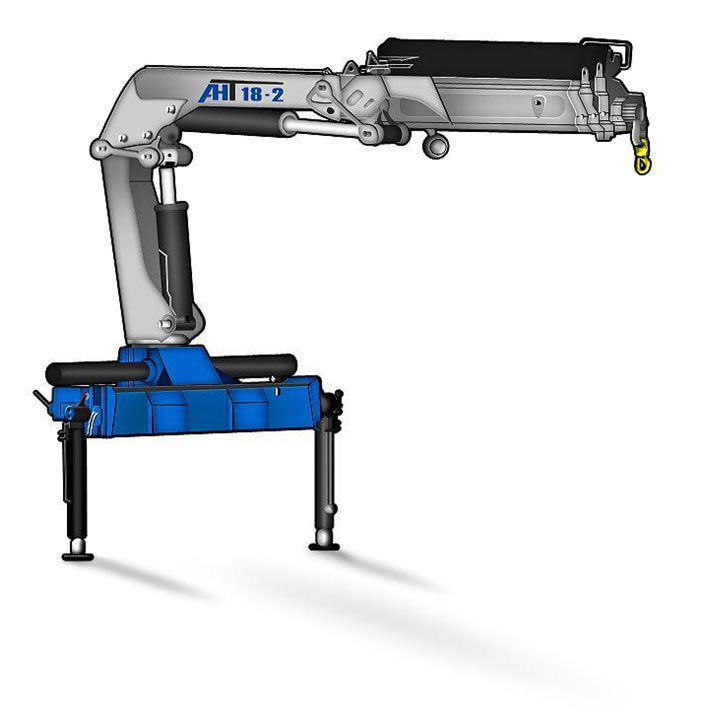

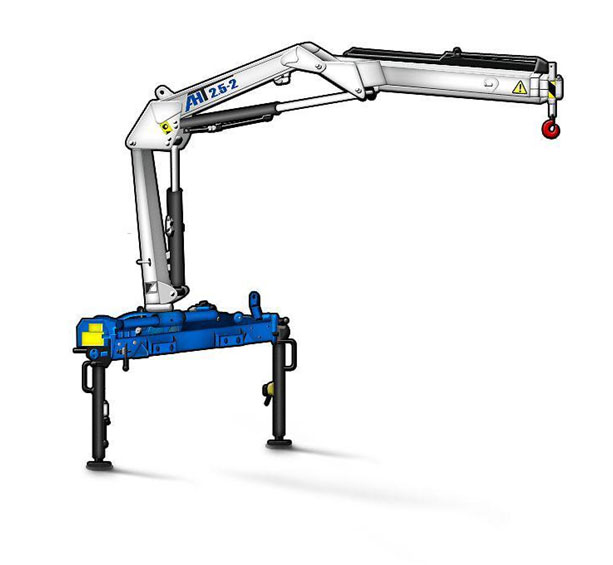

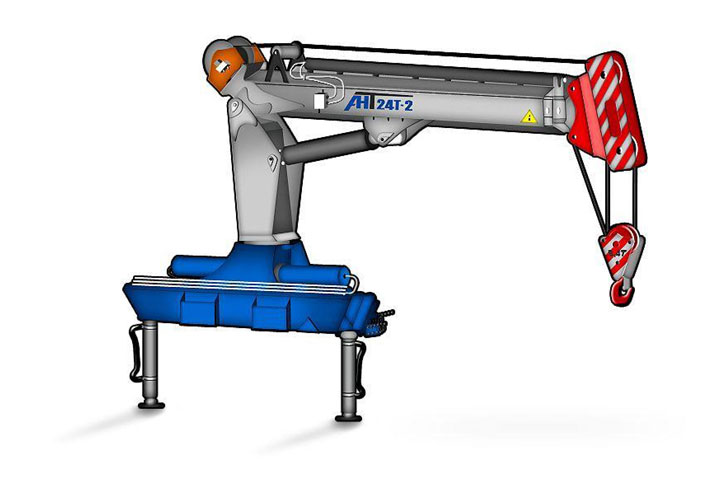

ANT loader cranes are mounted on trucks, tractors, or mobile repair facilities and are designed for various handling operations.
Their primary components are made of Swedish S700 MC steel. This material enables using such cranes at temperatures of down to -40°С while making them generally more lightweight.
Box-type extendable sections of ANT loader cranes have rounded corners and a hexagonal cross-section; each is made of a single steel sheet and has only one welding seam that is checked for defects by means of ultrasonography. Hydraulic components are selected for operation in moderate- and cold-climate areas. Hydraulic components are supplied by Dutch, Italian, German, and Swedish manufacturers.
An additional of ANT hydraulic cranes is that they have a simple design and feature no electronic safety components, making them more reliable and durable when operated in a difficult climate.
|
Model |
||||
|
Number of hydraulic extendable sections, pcs |
1 |
2 |
1 |
2 |
|
Load moment, tm |
1,83 |
2,50 |
4,40 |
5,12 |
|
Maximum lifting capacity, kg |
995 |
995 |
2010 |
2800 |
|
Lifting capacity at maximum reach, kg |
510 |
350 |
745 |
730 |
|
Maximum jib reach, m |
3,57 |
6,78 |
6,00 |
6,78 |
|
Operating ambient temperature, 0С |
-400…+400 |
-400…+400 |
400…+400 |
-400…+400 |
|
Maximum lifting height, m |
4,66 |
7,90 |
7,95 |
8,00 |
|
Maximum lowering depth, m |
1,54 |
5,00 |
2,50 |
5,00 |
|
Control method |
Hydraulic. |
Hydraulic. |
Hydraulic. |
Hydraulic. |
|
Column rotation angle, deg |
400 |
410 |
410 |
410 |
|
Control spot |
From the ground |
From the ground |
From the ground |
From the ground |
|
Leg positioning during transport |
Up |
Up |
Up |
Up |
|
Retractable leg type |
Mechanical |
Mechanical |
Mechanical |
Mechanical |
|
Retractable-leg base, mm |
2700 |
3160 |
3360 |
3160 |
|
Weight excluding the hydraulic pump and the fluid, kg |
425 |
645 |
1016 |
980 |
|
Hydraulic tank capacity (full/max/min) |
27,2/23,6/19,9 |
28,8/25,1/20,7 |
45/40/35 |
48/40/36 |
|
Pump capacity, l/s |
11 |
15 |
15 |
15 |
|
Operating pressure, MPa |
20 |
28 |
25 |
28,5 |
|
Stud-axis size, mm |
310 |
460 |
692 |
532 |
|
Dimensions for frame mounting, mm |
610 |
780 |
974 |
780 |
|
Dimensions, mm |
1850х410х1955 |
2200х580х1570 |
2400х774х2426 |
2200х600х1700 |
|

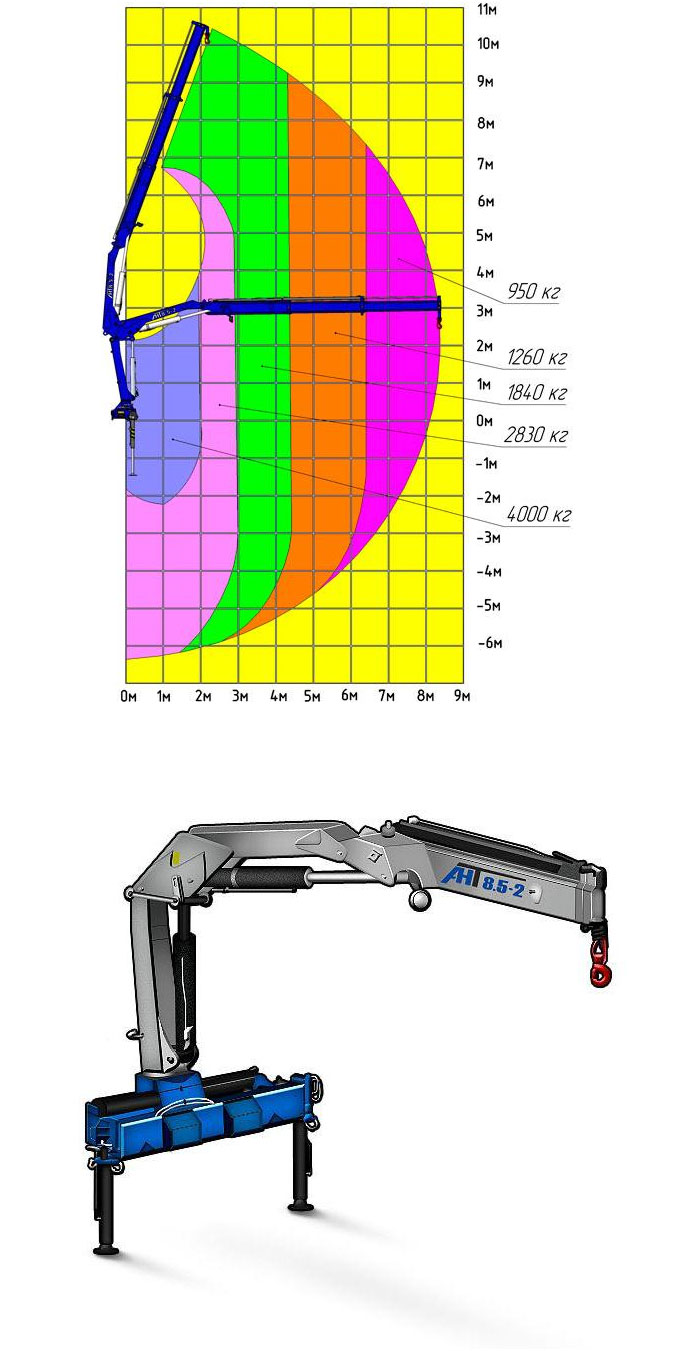

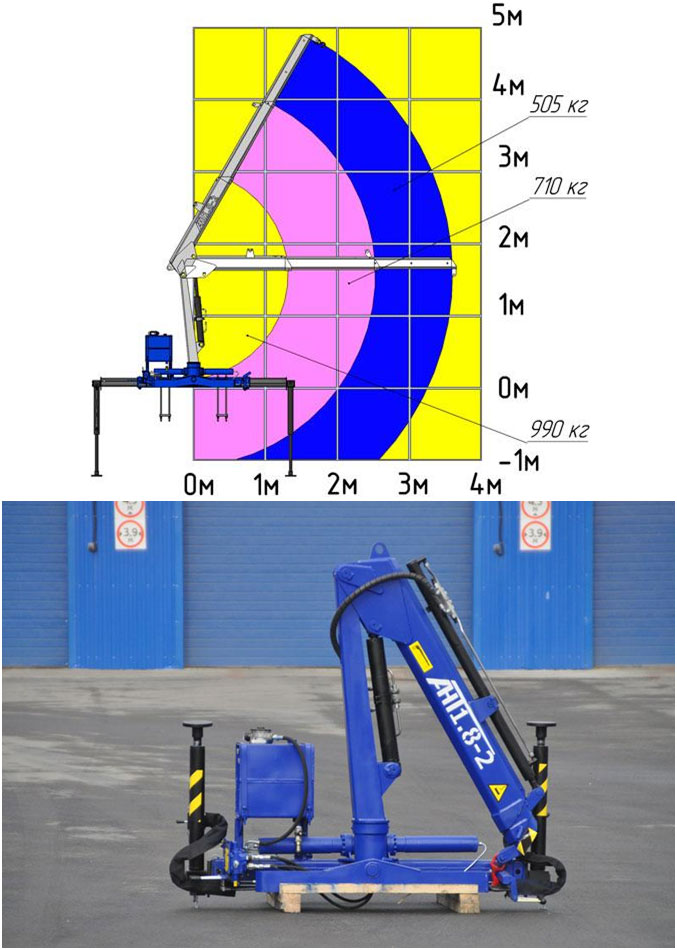

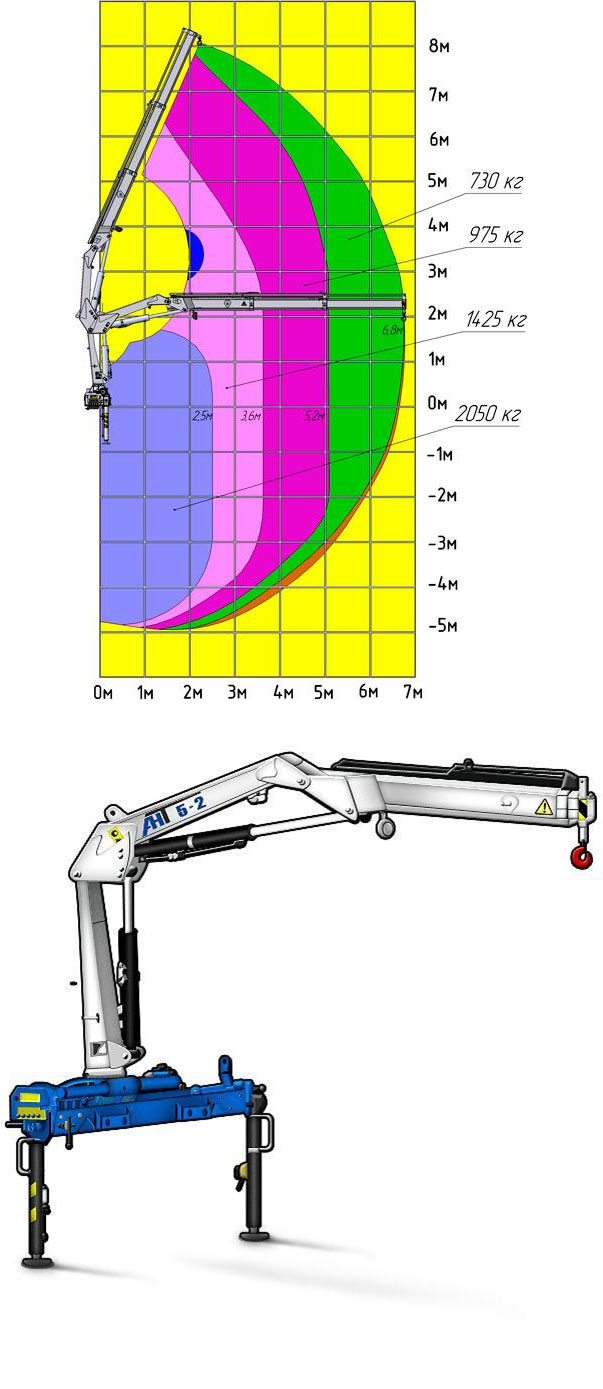

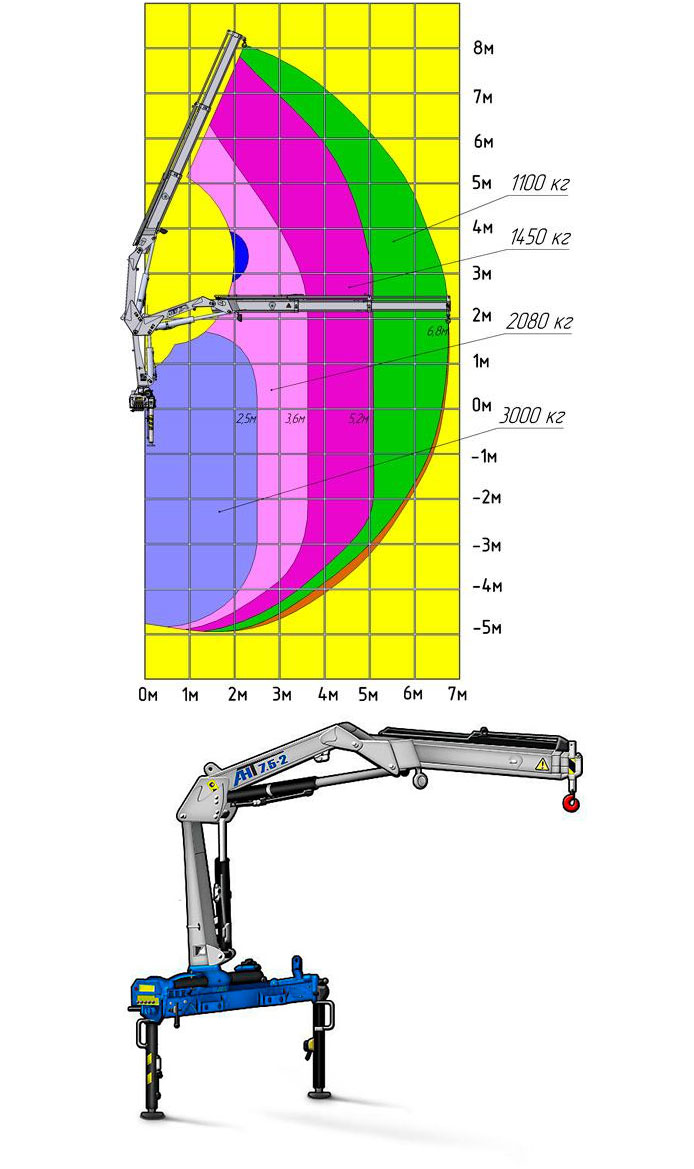

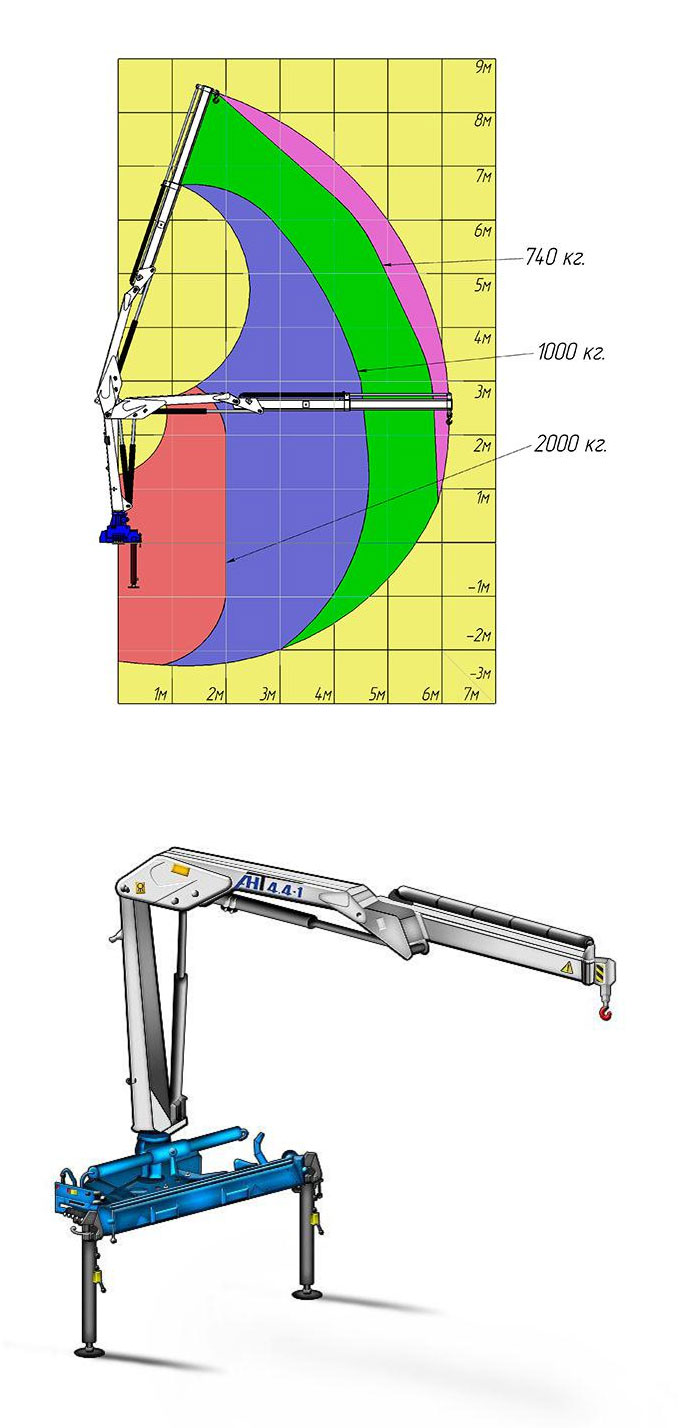

Lifting capacity |
 |
 |
 |
 |
|
Model |
||||
|
Number of hydraulic extendable sections, pcs |
2 |
2 |
2 |
3 |
|
Load moment, tm |
7,50 |
8,50 |
12,00 |
11,8 |
|
Maximum lifting capacity, kg |
3000 |
4010 |
6060 |
3900 |
|
Lifting capacity at maximum reach, kg |
1100 |
960 |
1330 |
950 |
|
Maximum jib reach, m |
6,80 |
8,37 |
8,40 |
10,4 |
|
Operating ambient temperature, 0C |
400…+400 |
-400…+400 |
400…+400 |
-400…+400 |
|
Maximum lifting height, m |
8,00 |
10,02 |
10,50 |
12,4 |
|
Maximum lowering depth, m |
5,00 |
6,00 |
6,00 |
7 |
|
Control method |
Hydraulic. |
Hydraulic. |
Hydraulic. |
Hydraulic. |
|
Column rotation angle, deg |
390 |
410 |
390 |
|
|
Control spot |
From the ground |
From the ground |
From the ground |
From the ground |
|
Leg positioning during transport |
Up |
Up |
Up |
Up |
|
Retractable leg type |
Mechanical |
Mechanical |
Mechanical |
Mechanical |
|
Retractable-leg base, mm |
4234 |
3704 |
3700 |
3700 |
|
Weight excluding the hydraulic pump and the fluid, kg |
1020 |
1580 |
2120 |
2120 |
|
Hydraulic tank capacity (full/max/min) |
48/40/36 |
63,6/52/45,6 |
135/125/116 |
139/129/118 |
|
Pump capacity, l/s |
15 |
25 |
32 |
32 |
|
Operating pressure, MPa |
28 |
28 |
28 |
28 |
|
Stud-axis size, mm |
538 |
620 |
720 |
720 |
|
Dimensions for frame mounting, mm |
780 |
860 |
960 |
960 |
|
Dimensions, mm |
2200х600х1740 |
2500х800х2340 |
2478х867х2235 |
2480х854х2235 |
|

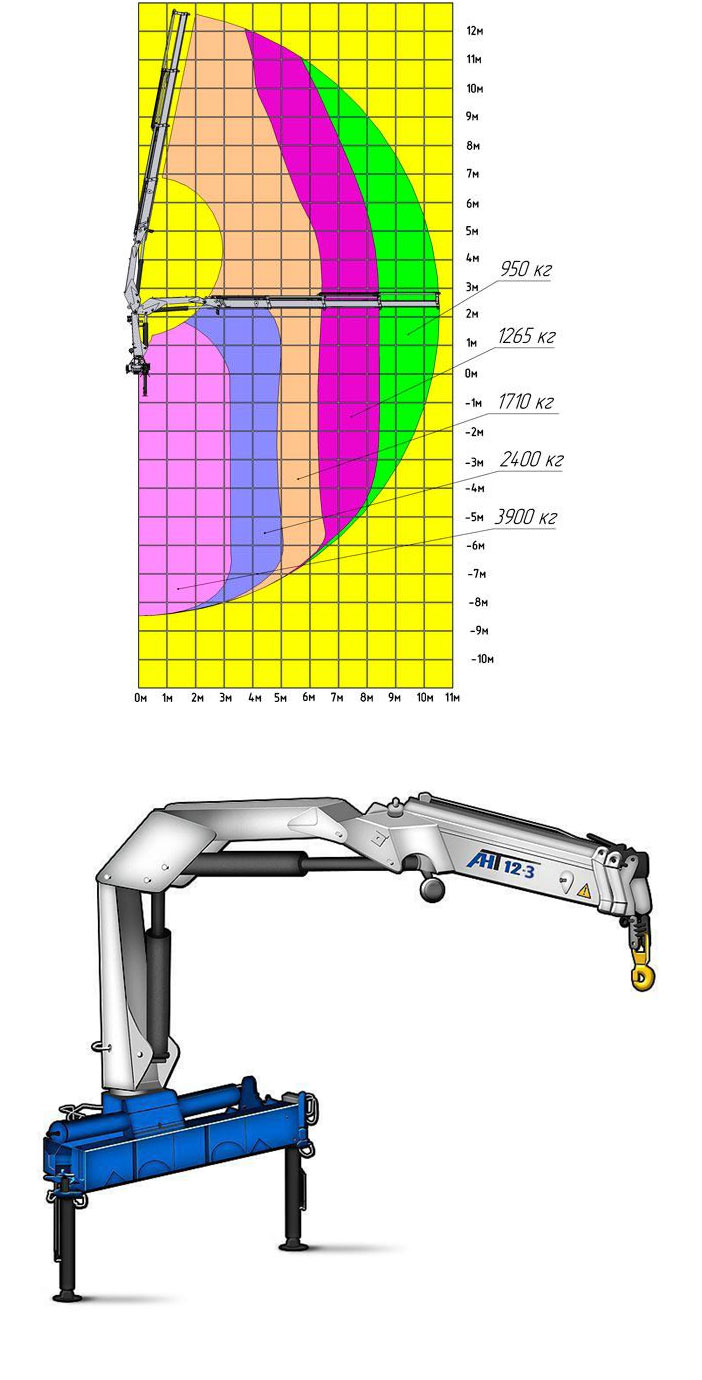

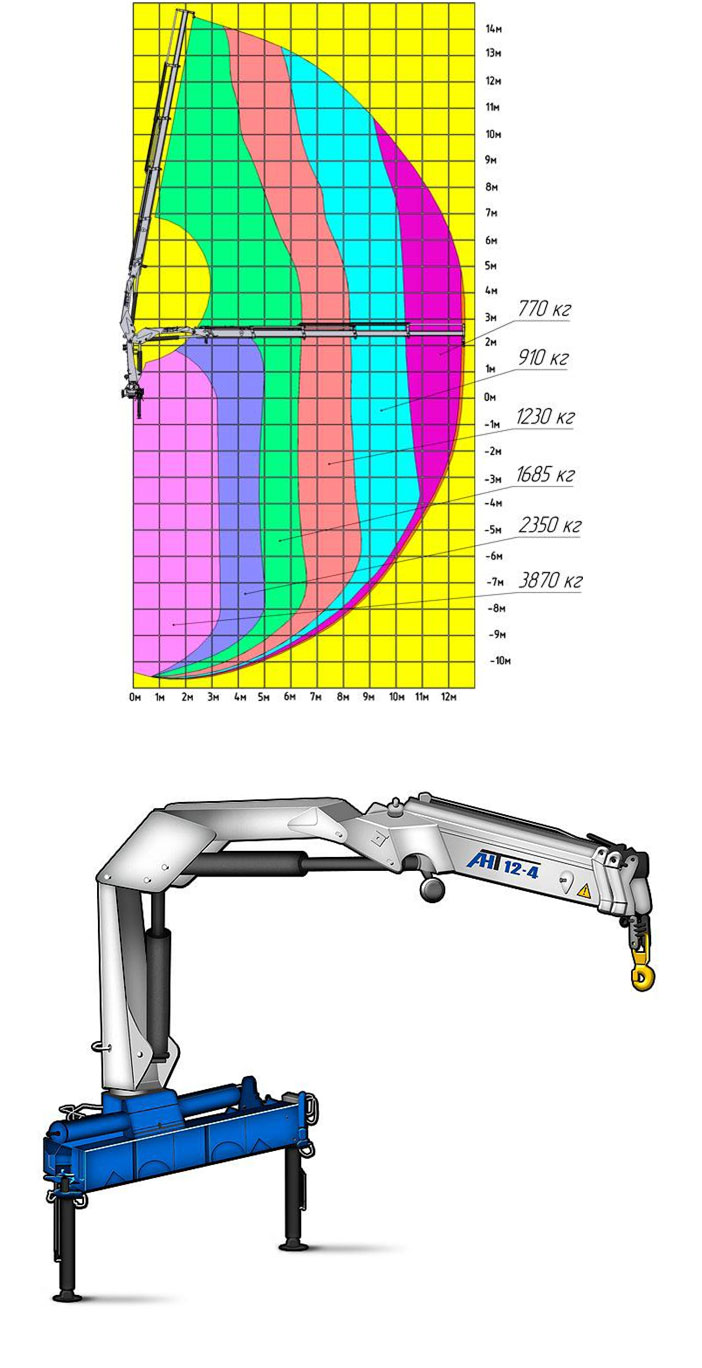

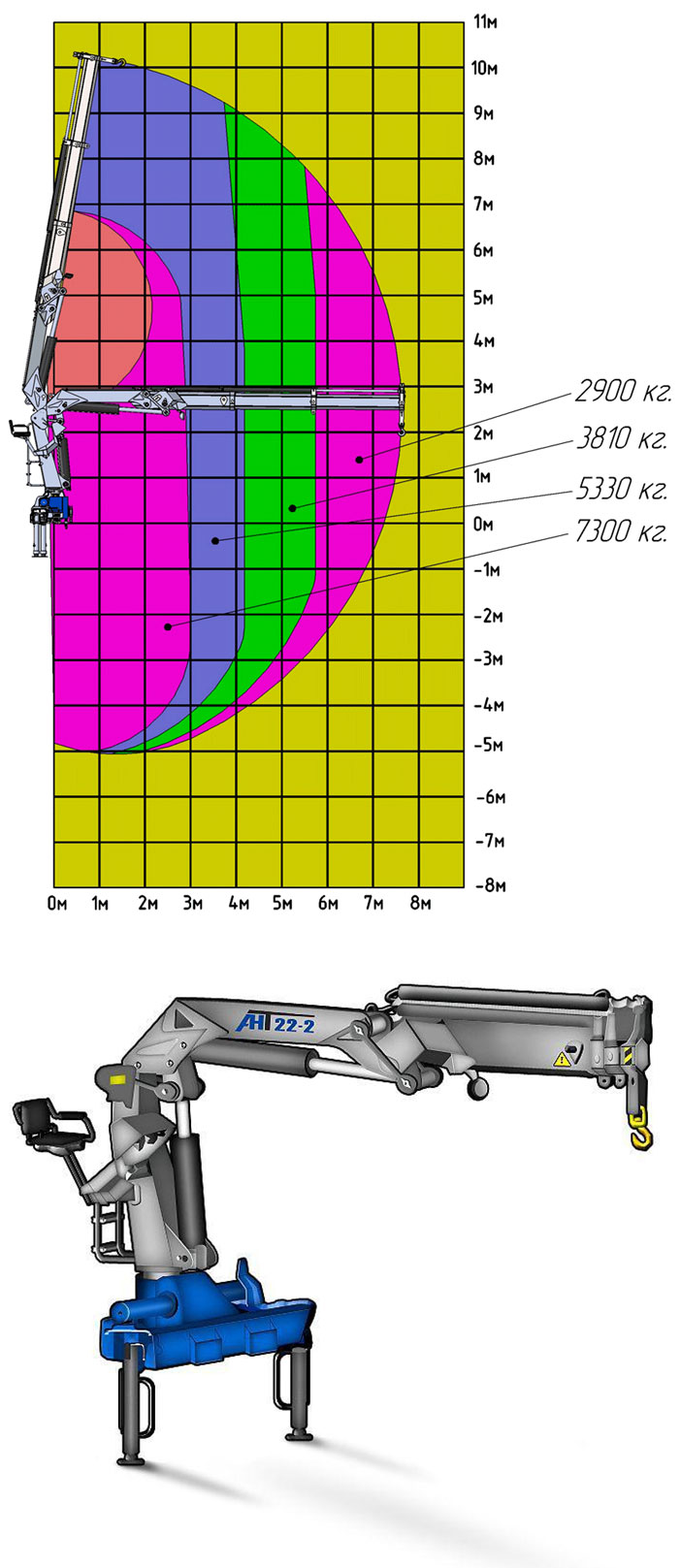

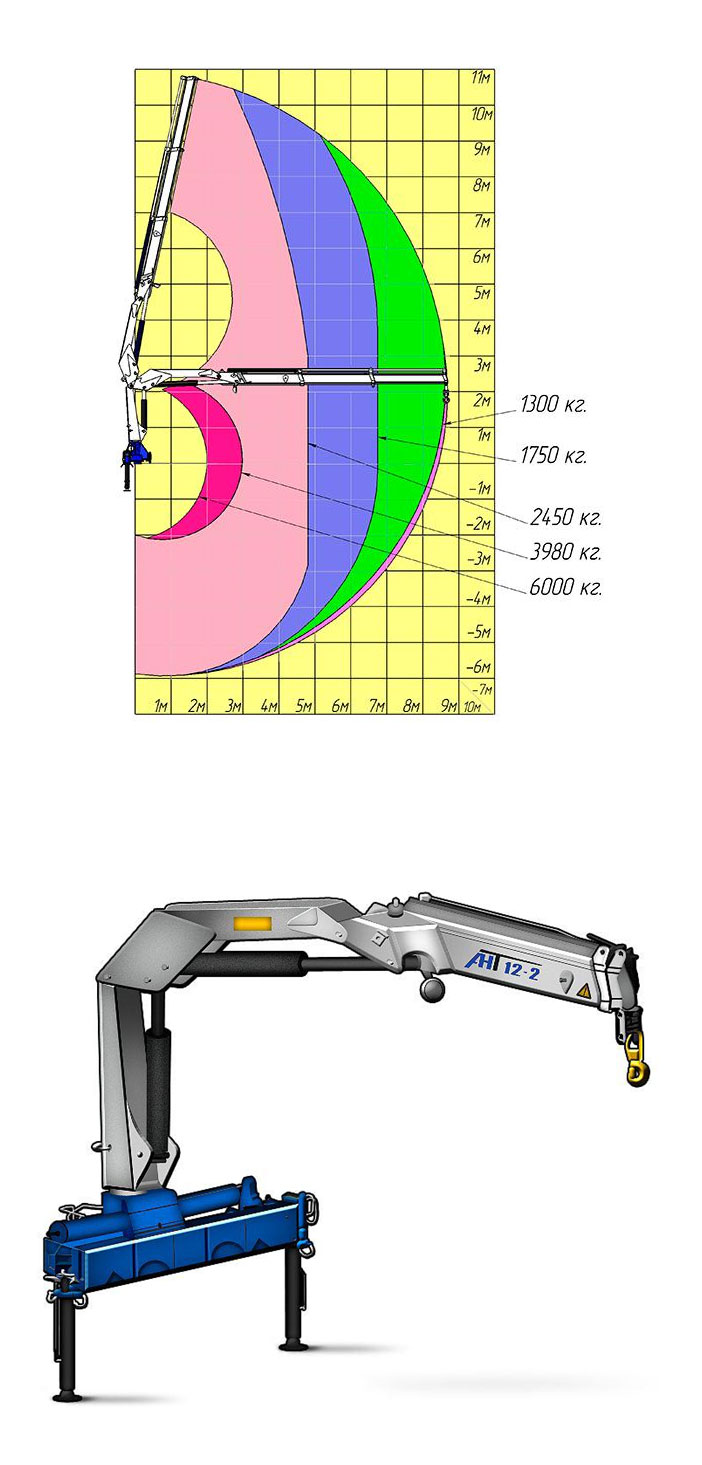

Lifting capacity |
 |
 |
 |
 |
|
Model |
||||
|
Number of hydraulic extendable sections, pcs |
4 |
2 |
5 |
2 |
|
Load moment, tm |
11,60 |
17,90 |
17,20 |
22 |
|
Maximum lifting capacity, kg |
3870 |
8800 |
5750 |
7300 |
|
Lifting capacity at maximum reach, kg |
770 |
2200 |
870 |
2910 |
|
Maximum jib reach, m |
12,35 |
8,00 |
14,60 |
7,60 |
|
Operating ambient temperature, 0C |
-400…+400 |
-400…+400 |
400…+400 |
-400…+400 |
|
Maximum lifting height, m |
14,27 |
9,80 |
16,00 |
9,58 |
|
Maximum lowering depth, m |
10,46 |
6,00 |
12,00 |
4,95 |
|
Control method |
Hydraulic. |
Hydraulic. |
Hydraulic. |
Hydraulic. |
|
Column rotation angle, deg |
390 |
390 |
390 |
410 |
|
Control spot |
From the ground |
From the seat |
From the seat |
From the seat |
|
Leg positioning during transport |
Down |
Up |
Up |
Down |
|
Retractable leg type |
Mechanical |
Hydraulic. |
Hydraulic. |
Hydraulic. |
|
Retractable-leg base, mm |
3700 |
5660 |
5660 |
5890 |
|
Weight excluding the hydraulic pump and the fluid, kg |
2280 |
2650 |
3155 |
3350 |
|
Hydraulic tank capacity (full/max/min) |
135/125/116 |
95/90/85 |
95/90/85 |
186/167/129 |
|
Pump capacity, l/s |
32 |
40 |
60 |
|
|
Operating pressure, MPa |
28 |
28 |
28 |
25 |
|
Stud-axis size, mm |
720 |
824 |
824 |
848 |
|
Dimensions for frame mounting, mm |
960 |
1060 |
1060 |
1090 |
|
Dimensions, mm |
2480х865х2235 |
2490х1305х2330 |
2490х1305х2330 |
2480х1430х2495 |
|

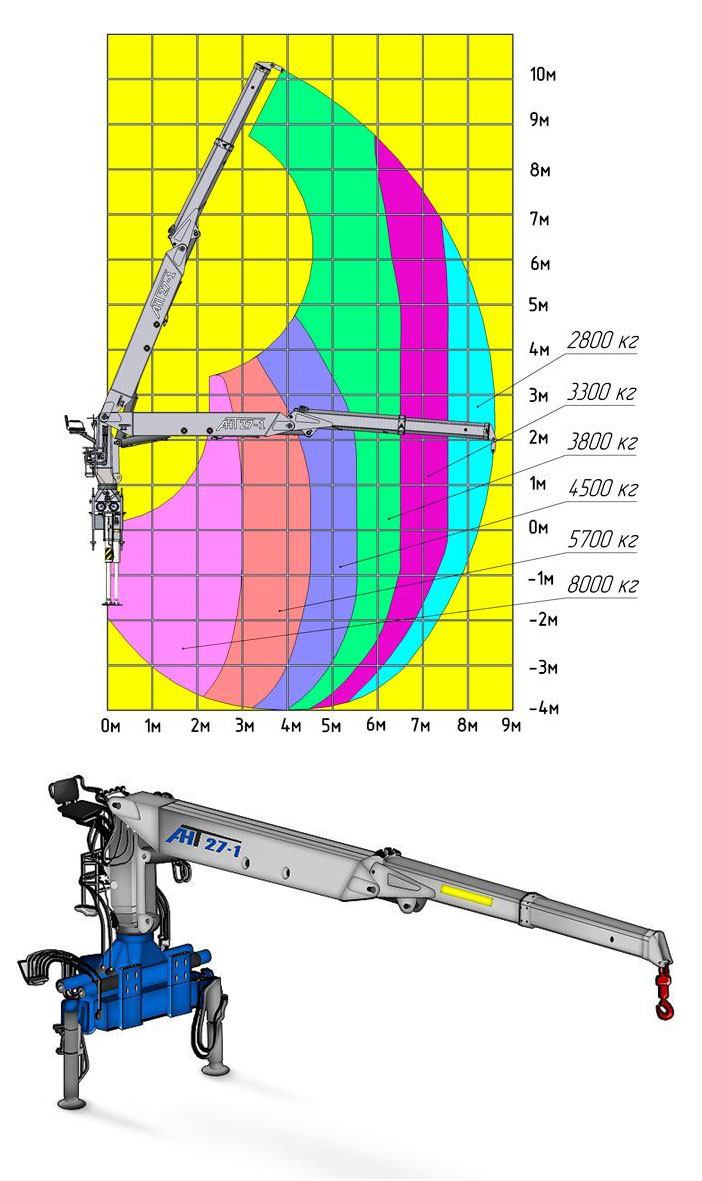

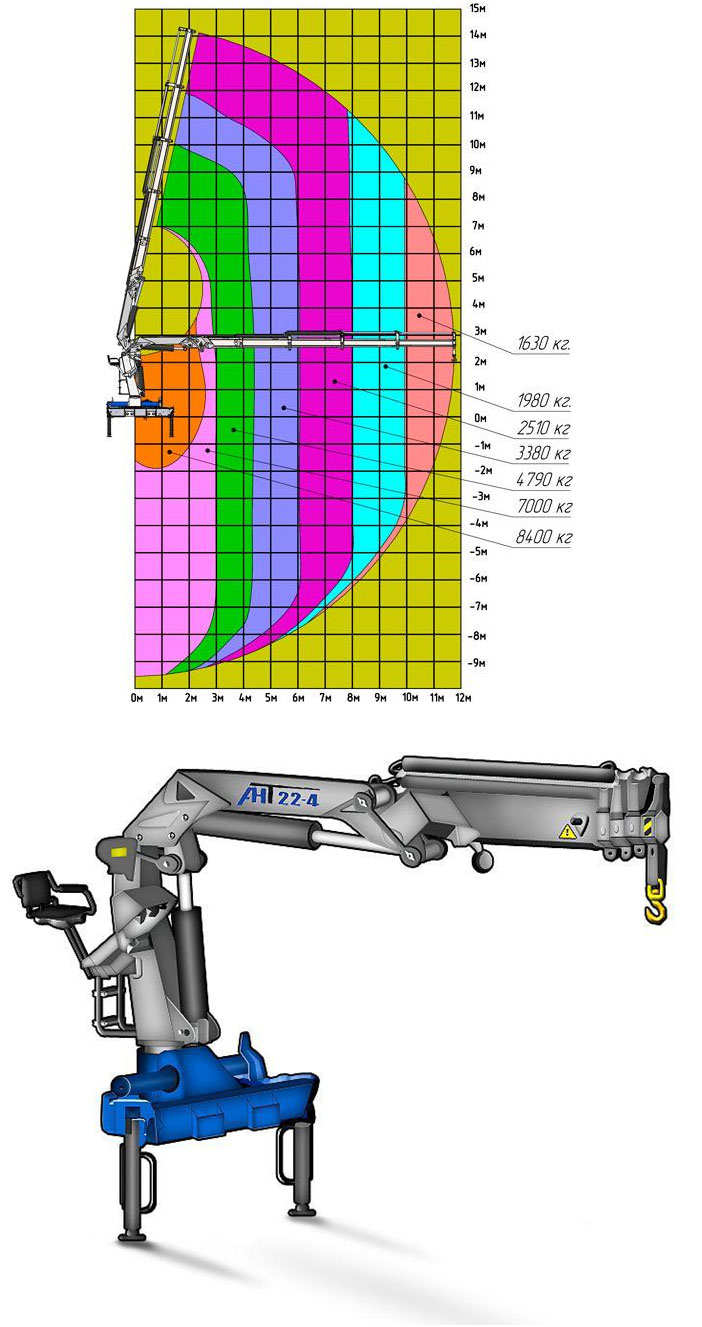

Lifting capacity |
|
|
|
Model |
|||
|
Number of hydraulic extendable sections, pcs |
4 |
2 |
1 |
|
Load moment, tm |
21,00 |
23,3 |
27,00 |
|
Maximum lifting capacity, kg |
7050 |
8400 |
9000 |
|
Lifting capacity at maximum reach, kg |
1630 |
2200 |
3300 |
|
Maximum jib reach, m |
11,70 |
9,00 |
8,00 |
|
Operating ambient temperature, 0C |
400…+400 |
-400…+400 |
400…+400 |
|
Maximum lifting height, m |
13,63 |
10,90 |
9,50 |
|
Maximum lowering depth, m |
9,60 |
5,80 |
2,20 |
|
Control method |
Hydraulic. |
Hydraulic. |
Hydraulic. |
|
Column rotation angle, deg |
410 |
410 |
|
|
Control spot |
From the seat |
From the ground |
From the seat |
|
Leg positioning during transport |
Down |
Down |
|
|
Retractable leg type |
Hydraulic. |
Hydraulic. |
|
|
Retractable-leg base, mm |
5890 |
4500 |
|
|
Weight excluding the hydraulic pump and the fluid, kg |
3350 |
2630 |
3900 |
|
Hydraulic tank capacity (full/max/min) |
186/167/129 |
140 |
|
|
Pump capacity, l/s |
60 |
||
|
Operating pressure, MPa |
25 |
26 |
|
|
Stud-axis size, mm |
848 |
848 |
630 |
|
Dimensions for frame mounting, mm |
1090 |
1115 |
870 |
|
Dimensions, mm |
2480х1430х2495 |
||
|
Lifting capacity |
 |
 |
*Technical specifications are presented on this page for reference only, as the parameters and other operational indicators depend on the vehicle configuration of choice.
