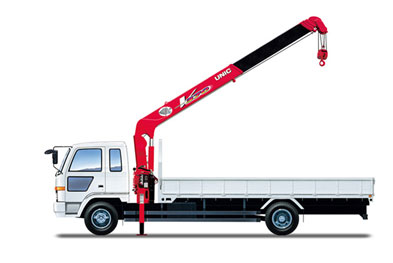

Loader cranes by Furukawas Unic Corporation, Japan, are known worldwide under the brand UNIC. UNIC cranes are hydraulic cranes with a full-circle telescopic jib and a cable-suspended hook.
Unlike cranes that have no cable suspension for the handling device, UNIC loader cranes have the following advantages:
- Simple design: less nodes and knuckles means less wear-exposed parts, therefore, better reliability and cheaper maintenance;
- Cable suspension of the hook enables more accurate positioning of the load as compared to loader cranes without cable suspension. The load is placed on the prepared surface with a minimum error thanks to the device's ability to turn the load in space and to control the lowering process by adjusting it by pulling the cable;
- Loads can be lowered in a strictly straight vertical line while rigid cranes have a curved trajectory;
- Load lowering and lifting process is very smooth;
- The telescoping sections of the Unic crane jib extend turn-by-turn to maximize the use of the load moment;
- Load can be lifted or lowered from and to behind an obstacle, e.g. a wall. a fence, or any other obstacle;
- The unit can operate loads below the ground level (i.e. found in wells, quarries, etc.);
- Unic loader cranes are lightweight and durable.
|
Model |
||||||
|
Number of sections, pcs |
3 |
4 |
5 |
6 |
3 |
4 |
|
Load moment, tm |
4,848 |
8,18 |
7,88 |
|||
|
Maximum lifting capacity, kg |
3030 |
|||||
|
Lifting capacity at maximum reach |
580 |
330 |
180 |
100 |
680 |
480 |
|
Maximum jib reach, m |
6,60 |
8,90 |
10,80 |
12,80 |
7,70 |
10 |
|
Operating ambient temperature, 0С |
-400…+400 |
|||||
|
Maximum lifting height, m |
7,6 |
9,8 |
11,7 |
13,6 |
9,2 |
11,4 |
|
Maximum lowering depth, m |
7,4 |
10,1 |
12,5 |
14,9 |
8,7 |
11,5 |
|
Control method |
Mechanical/hydraulic |
|||||
|
Column rotation angle, deg |
360 unrestricted |
|||||
|
Control spot |
From the ground |
|||||
|
Leg positioning during transport |
Up |
|||||
|
Retractable leg type |
Hydraulic |
|||||
|
Leg base, mm |
3,5 |
|||||
|
Weight, kg |
805 |
880 |
970 |
1070 |
1045 |
1135 |
|
Hydraulic tank capacity, l |
27 |
32 |
||||
|
Pump capacity, l/s |
53 |
60 |
||||
|
Operating pressure, MPa |
20,6 |
|||||
|
Lifting capacity |
 |
 |
 |
 |
 |
 |
|
Model |
||||||||
|
Number of sections, pcs |
3 |
4 |
5 |
6 |
3 |
4 |
5 |
6 |
|
Load moment, tm |
8,18 |
7,88 |
12,4 |
12,4 |
11,8 |
11,8 |
||
|
Maximum lifting capacity, kg |
3030 |
|||||||
|
Lifting capacity at maximum reach |
680 |
480 |
250 |
130 |
1230 |
830 |
500 |
230 |
|
Maximum jib reach, m |
7,70 |
10 |
12,3 |
14,61 |
8,34 |
10,84 |
13,35 |
15,71 |
|
Operating ambient temperature, 0С |
-400…+400 |
|||||||
|
Maximum lifting height, m |
9,2 |
11,4 |
13,7 |
15,9 |
10,2 |
12,7 |
15,1 |
17,3 |
|
Maximum lowering depth, m |
8,7 |
11,5 |
14,3 |
17,1 |
9,4 |
12,5 |
15,5 |
18,4 |
|
Control method |
Mechanical/hydraulic |
|||||||
|
Column rotation angle, deg |
360 unrestricted |
|||||||
|
Control spot |
From the ground |
|||||||
|
Leg positioning during transport |
Up |
|||||||
|
Retractable leg type |
Hydraulic |
|||||||
|
Leg base, mm |
4200 |
3800 |
||||||
|
Weight, kg |
1080 |
1170 |
1305 |
1340 |
1 450 |
1 575 |
1 700 |
1 855 |
|
Hydraulic tank capacity, l |
32 |
59 |
||||||
|
Pump capacity, l/s |
60 |
|||||||
|
Operating pressure, MPa |
20,6 |
|||||||
|
Lifting capacity |
 |
 |
 |
 |
 |
 |
 |
 |
