Universal mobile air heaters, or UMH, are designed for heating various technological equipment, pipelines, aircraft engines and cabins, heating the air in aircraft cockpits and cabins, heating and venting residential and industrial space, heating drilling rigs, pumping tanks, drilling mud, lifting units, hydraulic power units for top-drive systems and blowout preventers, as well as for heating sundry equipment operating at 0°С to -45°С.

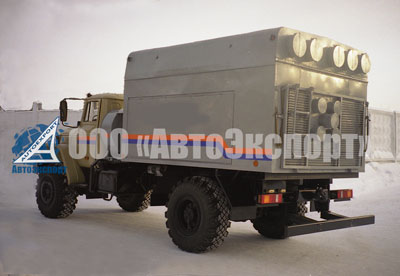

A UMH can be mounted on vehicle chassis and is an independent source of heat, equipped with an automated control system. Heaters are powered from the on-board vehicle mains, while the fan system is powered by the chassis PTO. Air is supplied to the heated object by means of flexible air-supply hoses. Vans have doors for equipment maintenance and repair.
|
UNIVERSAL MOBILE HEATER SPECIFICATIONS: BASIC CONFIGURATION |
|
|
Maximum heat power, kW (Gcal/h) |
400 (0,344) |
|
Max. heater output temperature, °С |
Up to 110 |
|
Fan capacity, m3/h |
18 000 |
|
Fan pressure, Pa |
1,200 to 1,600 |
|
Fan speed, rpm |
1200 |
|
Maintaining the set output temperature |
Automatic |
|
Number of flexible pressure hoses, pcs. |
12 |
|
Hose inner diameter, mm |
220 |
|
Hose length, mm |
6000 |
|
Fuel consumption, l/h |
Up to 30 |
|
Fuel tank capacity, l |
300 to 350 |
|
Number of outlets for hose connection, pcs. |
5 |
|
Fuel type |
Diesel |
|
Min. duration of continuous operation on a full fuel reserve, h |
10 |
|
Automated modular burner, pcs. |
2 |
*Technical specifications are presented on this page for reference only, as the parameters and other operational indicators depend on the vehicle configuration of choice.
