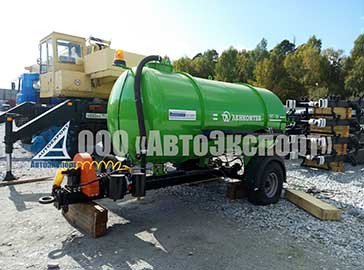

MV utility vacuum vehicle 2 to 20 m3





MV tanker truck is designed for vacuum cleaning of cesspools and for transporting waste to disposal sites; it can also be used for the mechanized filling, transport, and discharge of liquids.

Vacuum-vehicle attachments can be mounted on chassis of various brands and models.

TANK SPECIFICATIONS: BASIC CONFIGURATION

Rated tank capacity, l

2,000 to 20,000

Cross-section shape

Circle

Sections per tank

1

Tank material (reinforcing rings and ends)

Low-alloy steel grade 09Г2С,

4 mm thick

Frames

Exterior

Tank-to-subframe mount

By means of metal tie bands

VACUUM PUMP VERSIONS AND THEIR SPECIFICATIONS

Pump models

КО-505

КО-510

PNR-122D

НК6-МН

Country of origin

Russia

Russia

Italy

Russia

Explosion-proof implementation

no

no

no

no

Air flow capacity, m3/hour

310

360

730

450

Maximum self-suction depth, m min

4,5

4,5

7

4

Power consumption, kW

8

9

19

22

Rated rotor rotation speed, rpm

1450

1450

1300

1500

Generated pressure, MPa

0,085

0,085

0,008

0,1

Weight, kg

123

125

177

215

Pump drive

Driven by the chassis PTO

Maximum time to fill the tank by pumping, minutes

15

10

13

BASIC CONFIGURATION

Manhole

DN 500 mm, equipped with a system to prevent ingress of liquids into the pump

Safety valves:

Vacuum limiting valve
Pressure limiting valve

Dehumidifier

Collapsible, has an access window and a condensate drain valve

Vacuum pump control

4-stroke valve works in three steps:
1 — intake (the liquid is sucked into the tank)
2 — free evacuation of the system (self-running)
3 — forced evacuation of the system

Pressure-suction hose

1 pc., oil- and gasoline-resistant, 70 or 100 mm in diameter, 6 m in length, comes with a coupling nut or a Camlock quick-release coupling

Metal hose trays for pressure-suction hoses

2 pcs, one on each side of the tank; contain mountings for pressure-suction hoses

Viewing window

In the upper part of the back plate, translucent, with a cover for cleaning, with backlight

Vacuum pressure gage

Measures the vacuum created by the pump inside the tank when pumping in, or the pressure created when pumping out

Intake device

ANM-53 hatch

Oil separator

Equipped with a valve for discharge of waste oil

Ladder and platform for manhole maintenance

The platform is made of grooved non-slip metal and has handrails

Ladder and platform for vacuum pump maintenance

Foldable ladder and handrailed platform for vacuum pump maintenance

Electrical equipment

4 marker lamps on the sides of the tanker, 2 marker lights on top of the back plate, a spotlight on the back plate, and a vacuum-pump lamp

Packaging includes

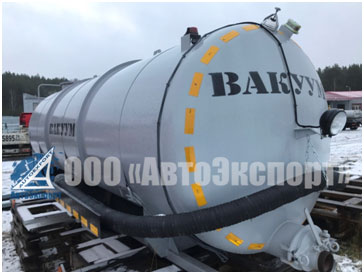

Gray tank, three sides of which say "VACUUM",

reflective markings for the tank

Wings

Plastic

ADDITIONAL OPTIONS
  • Manufacturing a bigger or smaller tank
  • Electronic cut-off (inductive sensor that stalls the engine when the tank is full)
  • Metal float to overlap the suction line
  • A 700-mm hatch in the rear end for cleaning the tank
  • Exhaust-enabled drain hatch heating
  • Metal toolbox with a lock
  • Making the tank (the reinforcing rings and the ends) of 5-mm steel rather than 4-mm steel
  • Tank calibration
  • Thermal insulation (thermos)
  • Duct-washing equipment
  • Installing a different pump upon the Customer's request



*Technical specifications are presented on this page for reference only, as the parameters and other operational indicators depend on the vehicle configuration of choice.
