INMAN loader cranes have a modern design with Z-shaped folding, which allows mounting them on various vehicles, e.g. trucks, tractors, buggies, etc.; they can also be mounted on foundations and steel structures. In order to improve the reliability and durability, all hydraulics is equipped with components by the world's premier manufacturers, while all the steel structures are made of high-quality steel (including imported steels).
Depending on the customer's desires, loader cranes can be controlled from the ground or from the column-fixed seat; redundant controls are implemented to enable the operator to seat on either side of the vehicle.
All the jibs have a hexagon profile to improve their rigidity while making them easy to center when telescoping and to ensure straight-line motion when extending.
While being small during transport, the telescopic jibs have a maximum sweeping radius of up to 18.0 m when deployed. Hydraulic cylinders can extend up to 4 telescopic sections. Using proportional hydraulic dispensers ensures smooth and reliable operation with adjustable motion speed and accurate positioning.
|

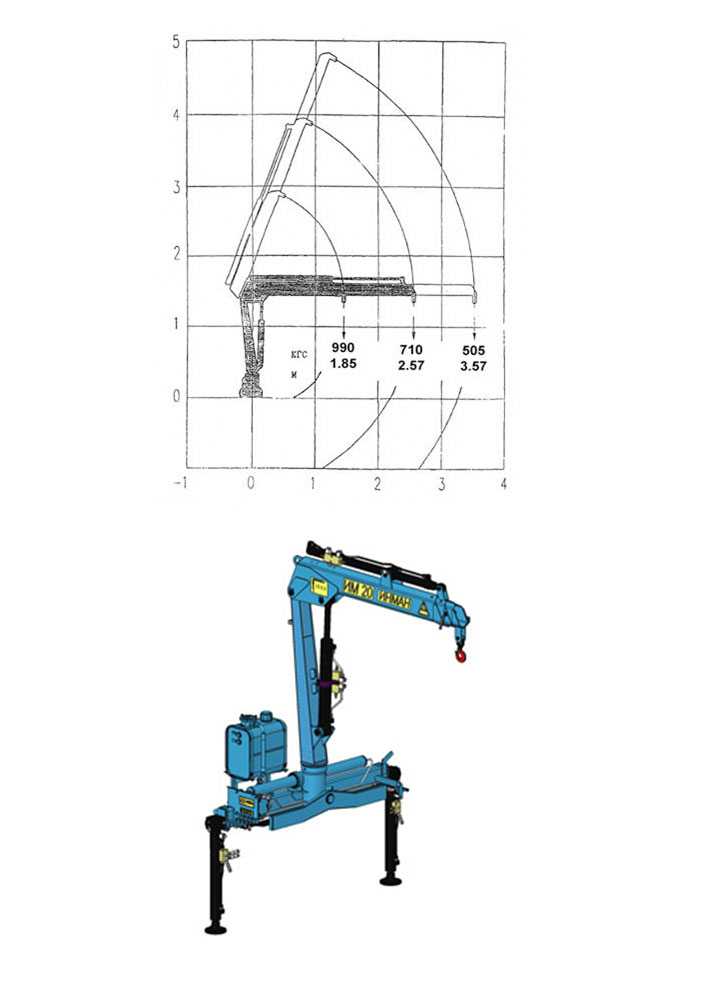

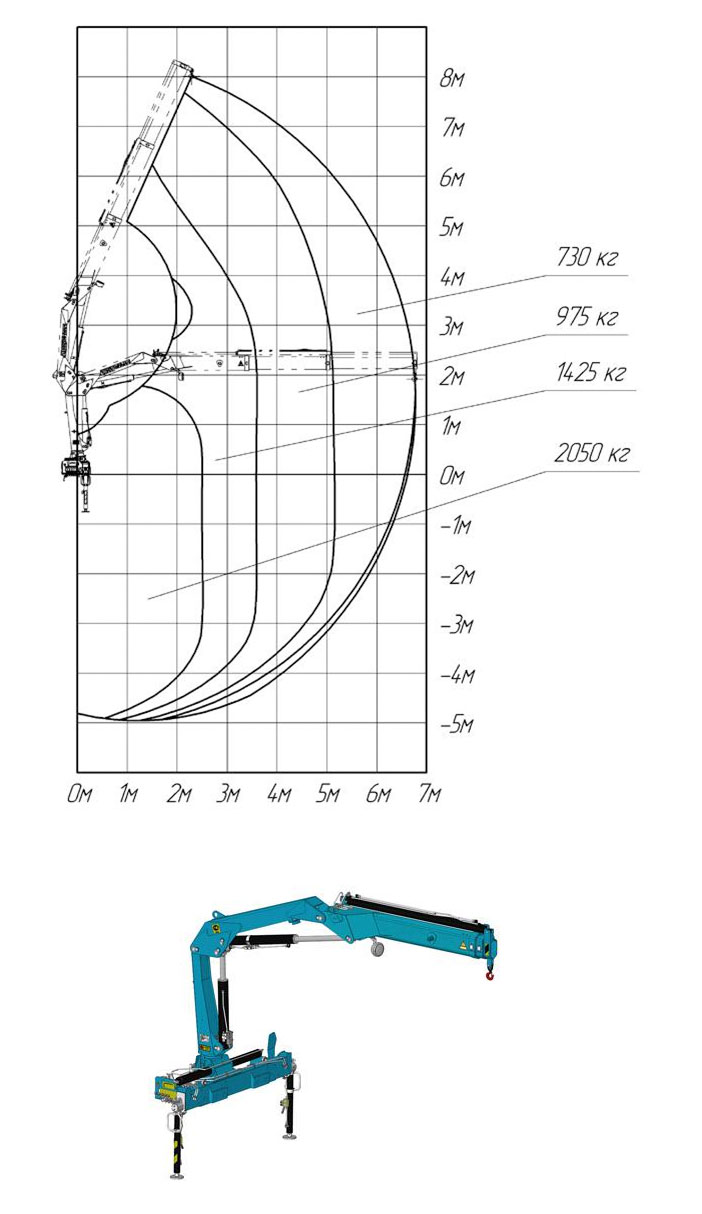

Model |
|||||
|
Number of hydraulic extendable sections, pcs |
2 |
1 |
2 |
1 |
2 |
|
Load moment, tm |
1,4 |
1,83 |
2,52 |
4,40 |
5,12 |
|
Maximum lifting capacity, kg |
990 |
990 |
990 |
2000 |
2815 |
|
Lifting capacity at maximum reach |
430 kg |
505 |
350 |
740 |
730 |
|
Maximum jib reach, m |
3,1 |
3,57 |
6,78 |
6 |
6,78 |
|
Operating ambient temperature, 0С |
-400…+400 |
-400…+400 |
-400…+400 |
-400…+400 |
-400…+400 |
|
Maximum lifting height, m |
4,33 |
4,66 |
7,90 |
9,20 |
8,00 |
|
Maximum lowering depth, m |
1,80 |
1,54 |
5,00 |
2,50 |
5,00 |
|
Control method |
Hydraulic. |
Hydraulic. |
Hydraulic. |
Hydraulic. |
Hydraulic. |
|
Column rotation angle, deg |
325 |
400 |
410 |
410 |
|
|
Control spot |
From the ground |
From the ground |
From the ground |
From the ground |
From the ground |
|
Leg positioning during transport |
Up |
Up |
Up |
Up |
Up |
|
Retractable leg type |
Mechanical |
Manual |
Manual |
Manual |
Manual |
|
Leg base, mm |
890 |
700 for retractable legs 1,700 for non-retractable legs |
3160 |
3,360 for retractable legs 2,200 for non-retractable legs |
3160 |
|
Stud-axis size, mm |
250 |
310 |
429 |
692 |
533 |
|
Mounting base, mm |
510 |
550 |
780 |
940 |
780 |
|
Weight excluding the hydraulic pump and the fluid, kg |
194 |
425 |
630 |
1016 |
980 |
|
Hydraulic tank capacity (full, max, min), l |
27,2/23,6/19,9 |
27,2/23,6/19,9 |
28,8/25,1/20,7 |
48/40/36 |
|
|
Pump capacity, l/s |
6 |
11 |
15 |
11 |
15 |
|
Operating pressure, MPa |
20 |
20 |
28 |
20 |
28,5 |
|
Dimensions during transport, mm |
395 х 1080 х 1325 |
1850 x 410 x 1720 |
2200 х 580 х 1570 |
2200 х 600 х 1700 |
|
|

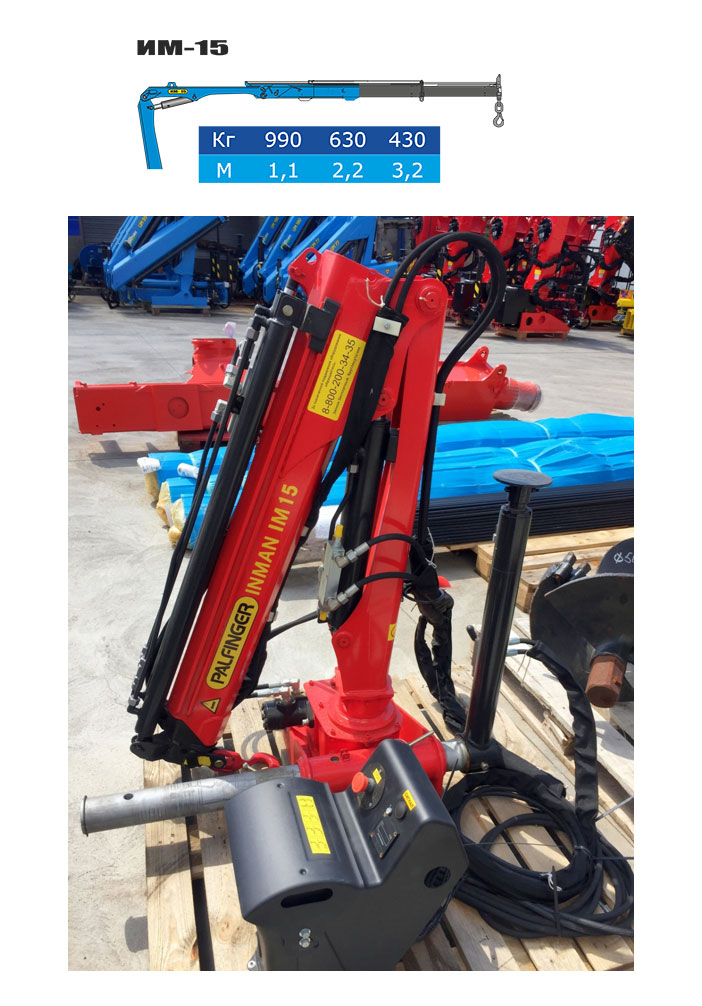

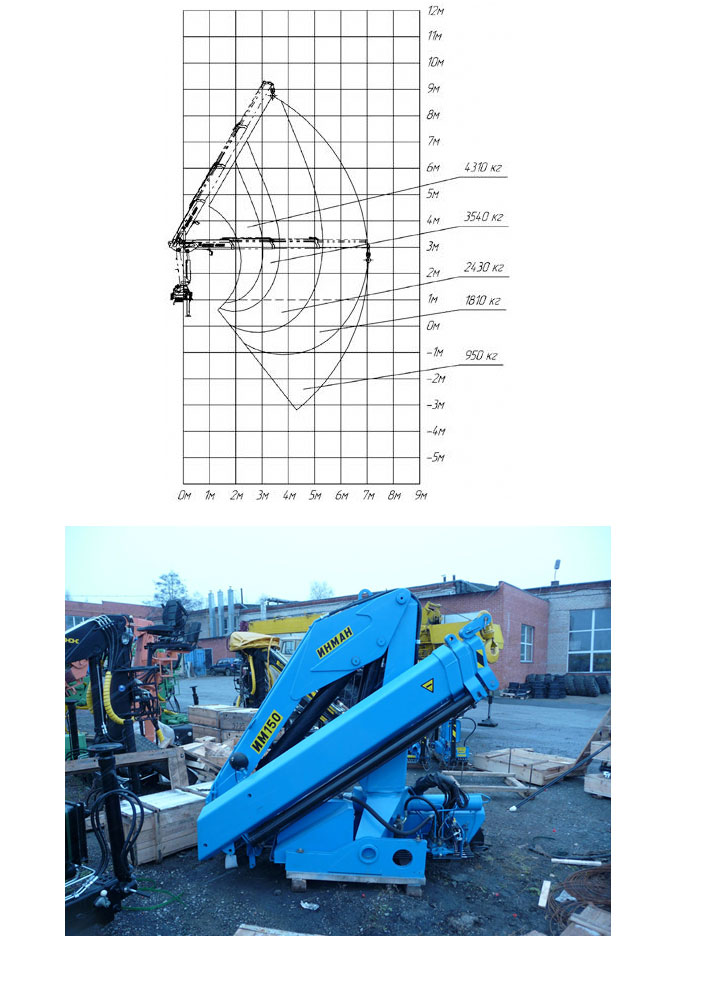

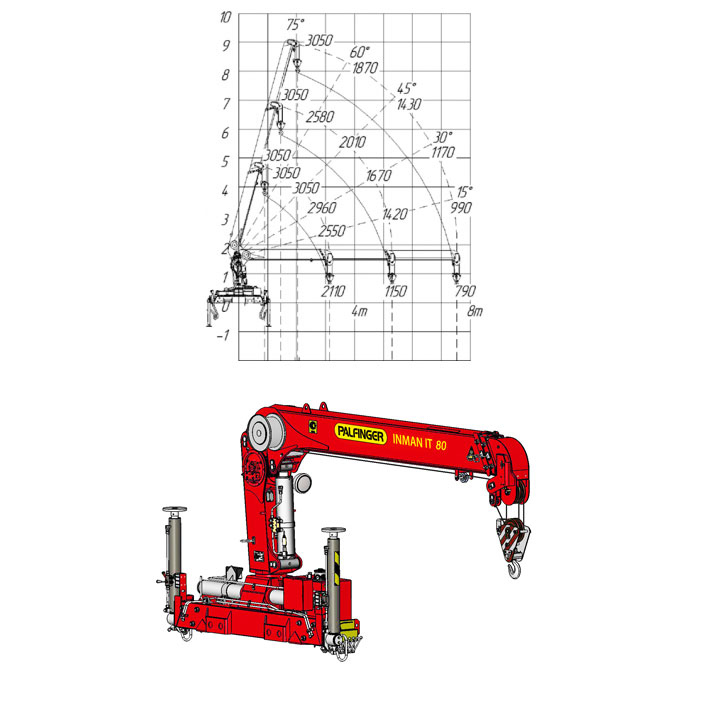

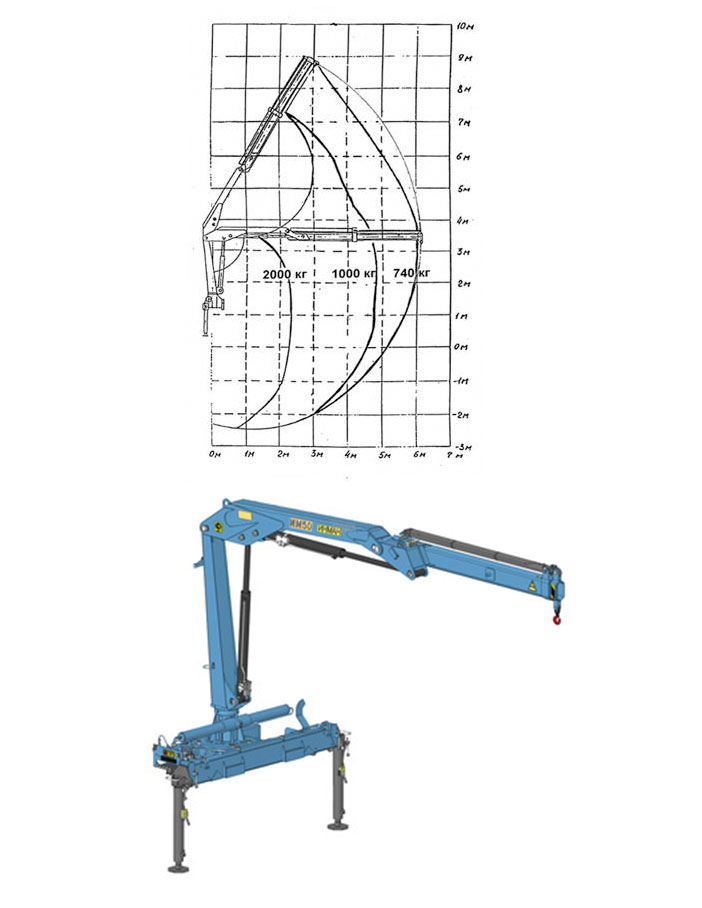

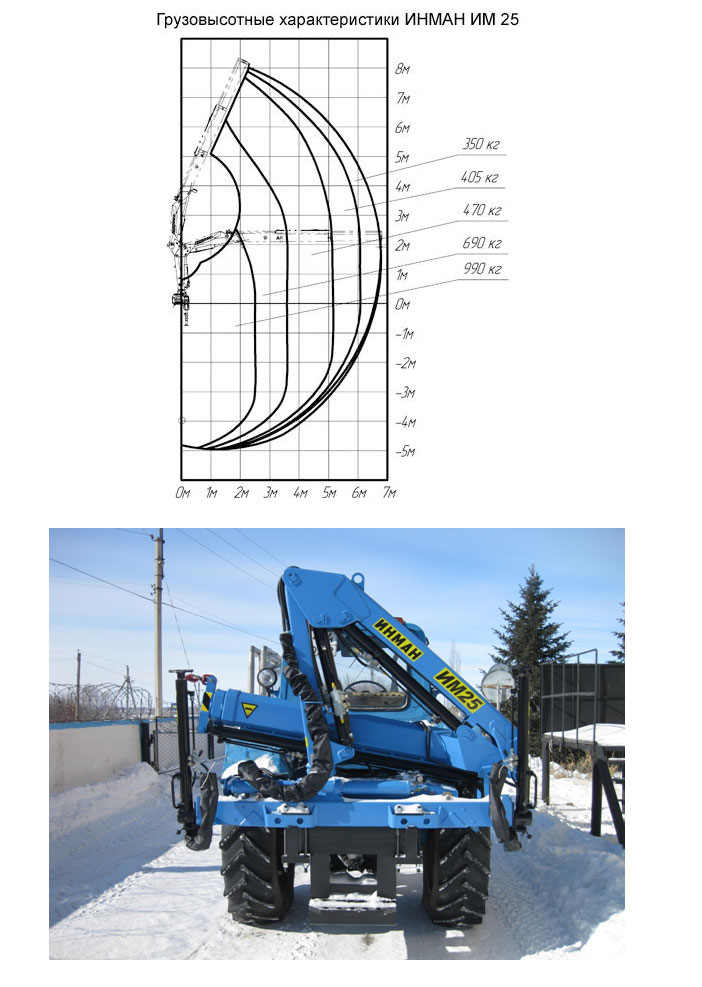

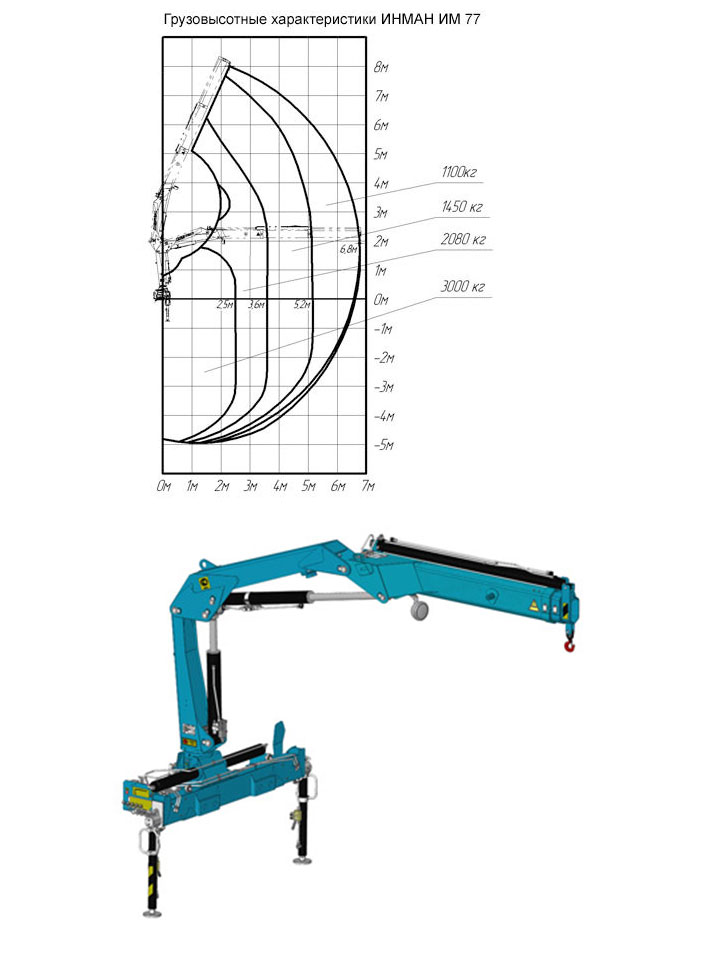

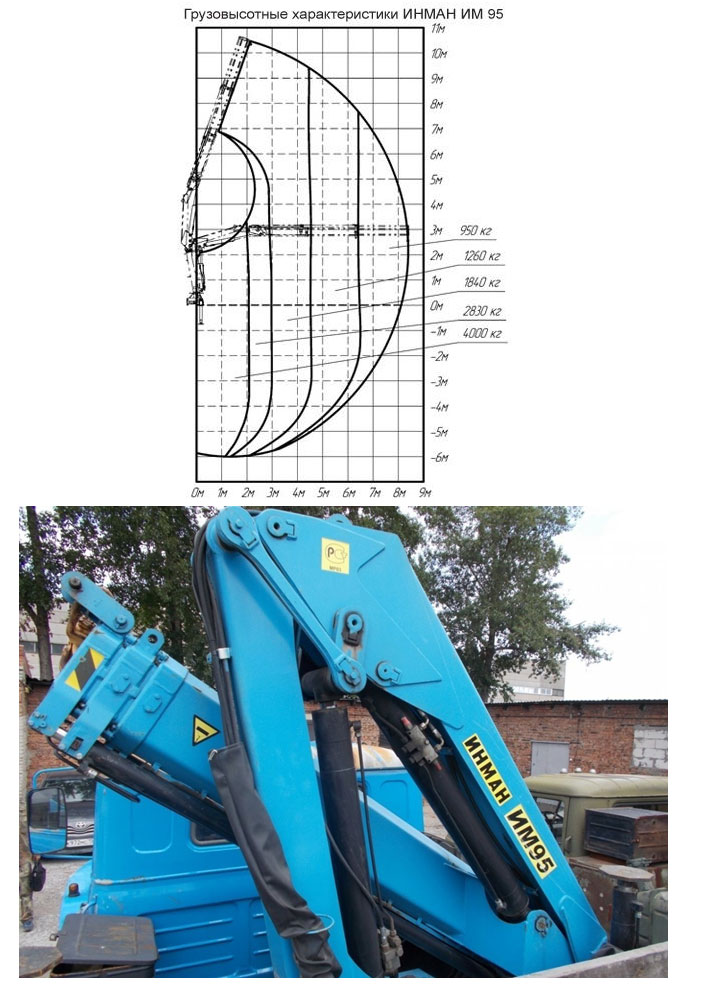

Lifting capacity |
|
|
|
|
|
|
Model |
|||||
|
Number of hydraulic extendable sections, pcs |
2 |
2 |
2 |
3 |
2 |
|
Load moment, tm |
7,5 |
8,2 |
8,50 |
12,93 |
14,3 |
|
Maximum lifting capacity, kg |
3000 |
3050 |
4000 |
4310 |
6100 |
|
Lifting capacity at maximum reach, kg |
1100 |
790 |
950 |
1810 |
1690 |
|
Maximum jib reach, m |
6,8 |
7,53 |
8.25 |
7,00 |
8,02 |
|
Operating ambient temperature, 0С |
-400…+400 |
-400…+400 |
-400…+400 |
-400…+400 |
-400…+400 |
|
Maximum lifting height, m |
8,00 |
8,00 |
9,94 |
8,93 |
9,5 |
|
Maximum lowering depth, m |
5,00 |
10,2 |
5,96 |
3,30 |
6,0 |
|
Control method |
Hydraulic. |
Hydraulic. |
Hydraulic. |
Hydraulic. |
Hydraulic. |
|
Column rotation angle, deg |
390 |
390 |
410 |
390 |
420 |
|
Control spot |
From the ground |
From the ground |
From the ground |
From the ground |
From the ground |
|
Leg positioning during transport |
Up |
Up |
Up |
Down |
Down |
|
Retractable leg type |
Manual |
Manual |
Manual |
Manual |
Manual |
|
Leg base, mm |
4234 |
4234 |
3704 |
4830 |
5000 |
|
Stud-axis size, mm |
538 |
542 |
620 |
700 |
703 + 724 |
|
Mounting base, mm |
780 |
800 |
860 |
940 |
1000 |
|
Weight excluding the hydraulic pump and the fluid, kg |
1020 |
1190 |
1500 |
1500 |
1769 |
|
Hydraulic tank capacity (full, max, min), l |
48/40/36 |
55/50/44 |
63,6/52/45,6 |
80 |
|
|
Pump capacity, l/s |
25 |
27 |
25 |
40 to 60 |
|
|
Operating pressure, MPa |
28 |
25,5 |
28 |
30 |
|
|
Dimensions during transport, mm |
2200 х 600 х 1700 |
3600 х 1 860 х 2244 |
2485 х 700 х 2340 |
803 х 2500 х 2200 |
|
|

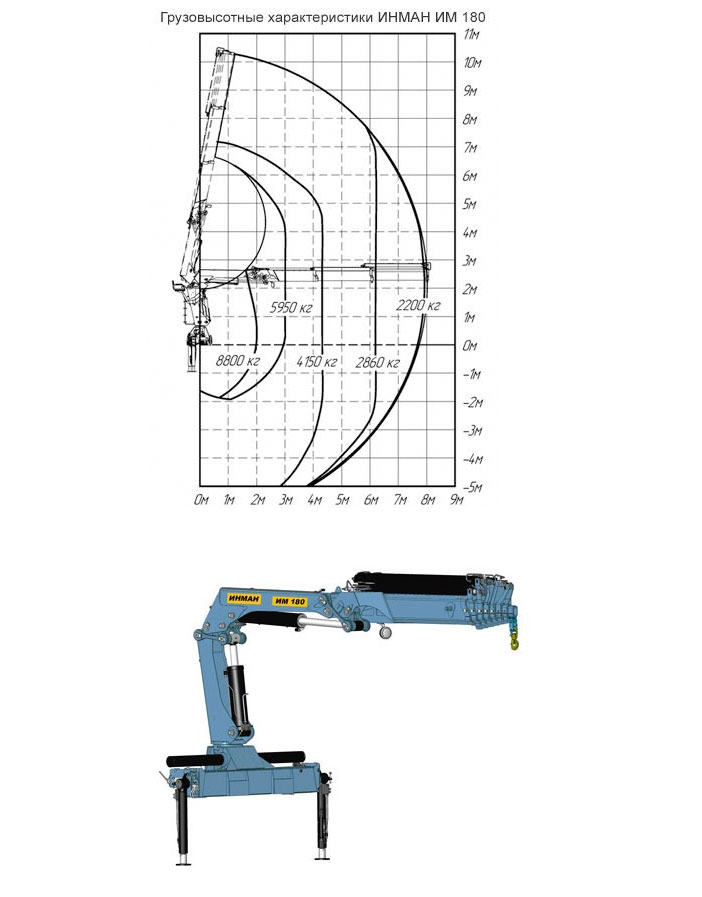

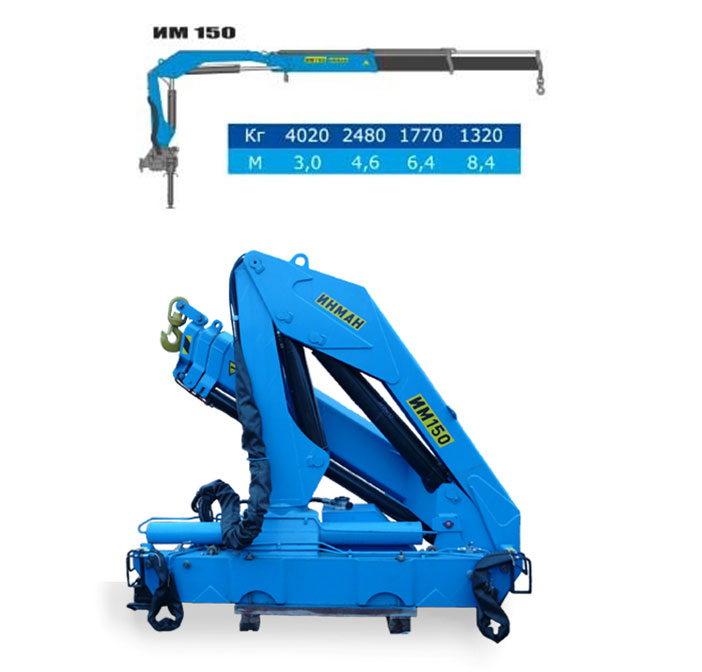

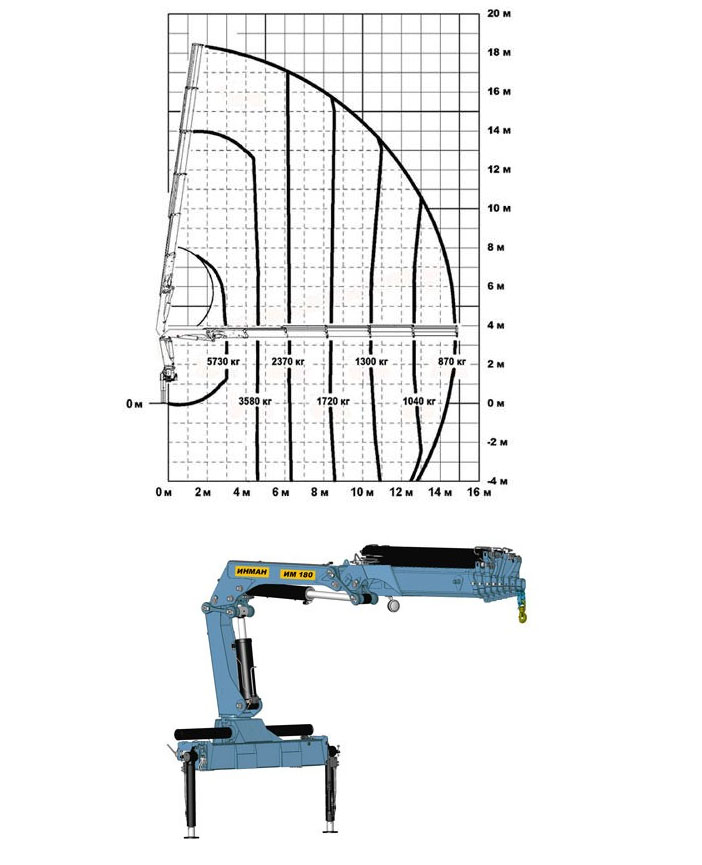

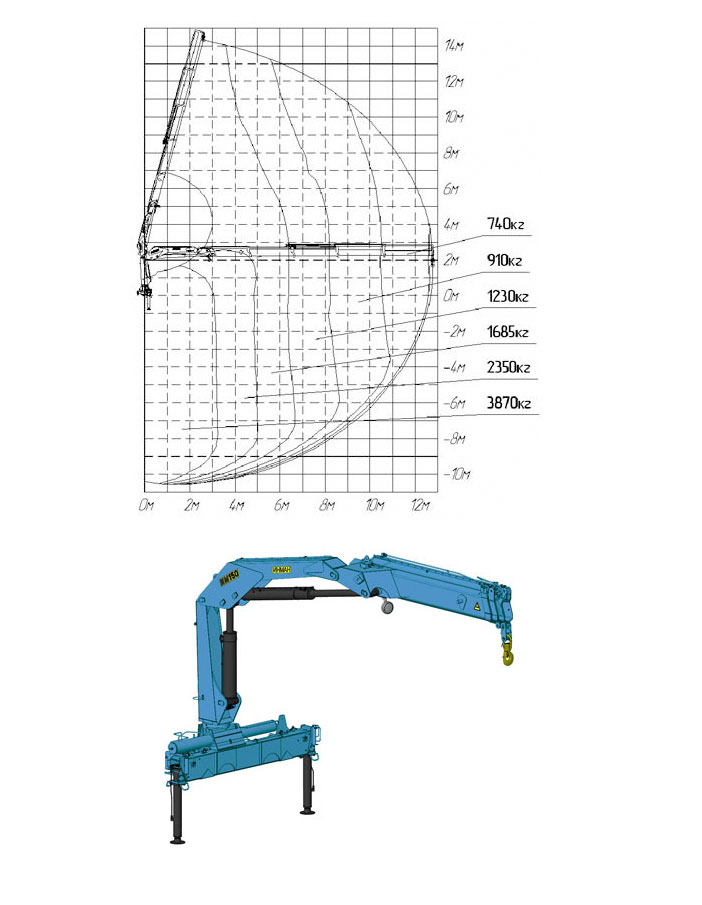

Lifting capacity |
|
|
|
|
|
|
Model |
|||||
|
Number of hydraulic extendable sections, pcs |
2 |
4 |
2 |
5 |
2 |
|
Load moment, tm |
12,10 |
11,60 |
17,90 |
17,20 |
21,90 |
|
Maximum lifting capacity, kg |
6050 |
3870 |
8800 |
5730 |
7300 |
|
Lifting capacity at maximum reach, kg |
1320 |
770 |
2200 |
870 |
2900 |
|
Maximum jib reach, m |
8,40 |
12,4 |
8,00 |
14,60 |
7,58 |
|
Operating ambient temperature, 0С |
-400…+400 |
-400…+400 |
-400…+400 |
-400…+400 |
-400…+400 |
|
Maximum lifting height, m |
10,55 |
14,27 |
11,10 |
16,30 |
9,58 |
|
Maximum lowering depth, m |
6,02 |
10,46 |
3,70 |
4,70 |
4,95 |
|
Control method |
Hydraulic. |
Hydraulic. |
Hydraulic. |
Hydraulic. |
Hydraulic. |
|
Column rotation angle, deg |
390 |
390 |
410 |
||
|
Control spot |
From the ground |
From the ground |
From the ground |
From the ground |
From the ground |
|
Leg positioning during transport |
Down |
Up/Down |
Up |
Up |
Down |
|
Retractable leg type |
Manual |
Manual |
Hydraulic. |
Hydraulic. |
Hydraulic. |
|
Leg base, mm |
3700 |
3700 |
5660 |
5660 |
5890 |
|
Stud-axis size, mm |
720 |
720 |
824 |
824 |
848 |
|
Mounting base, mm |
960 |
960 |
1060 |
1060 |
1090 |
|
Weight excluding the hydraulic pump and the fluid, kg |
2120 |
2280 |
2650 |
3155 |
3000 |
|
Hydraulic tank capacity (full, max, min), l |
139/129/118 |
95/90/85 |
186/167/129 |
||
|
Pump capacity, l/s |
32 |
40 |
50 |
||
|
Operating pressure, MPa |
28 |
28 |
25 |
||
|
Dimensions during transport, mm |
2480 х 854 х 2235 |
2490 х 1305 х 2330 |
2480 х 1430 х 2495 |
||
|

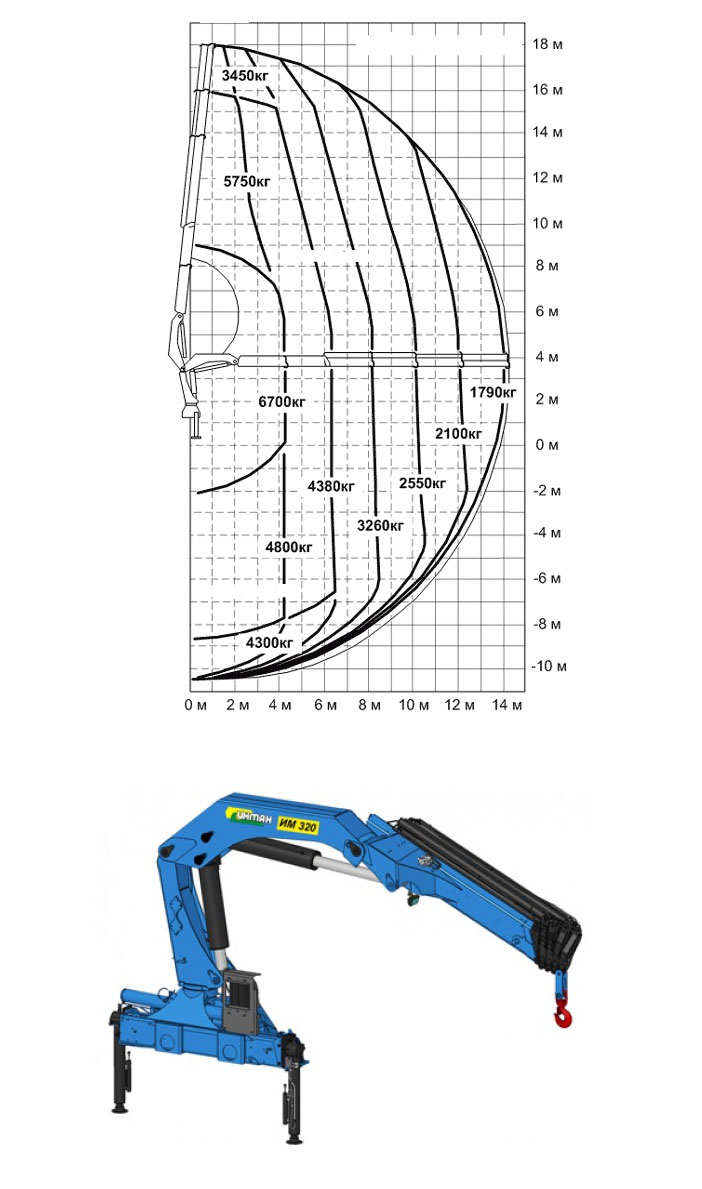

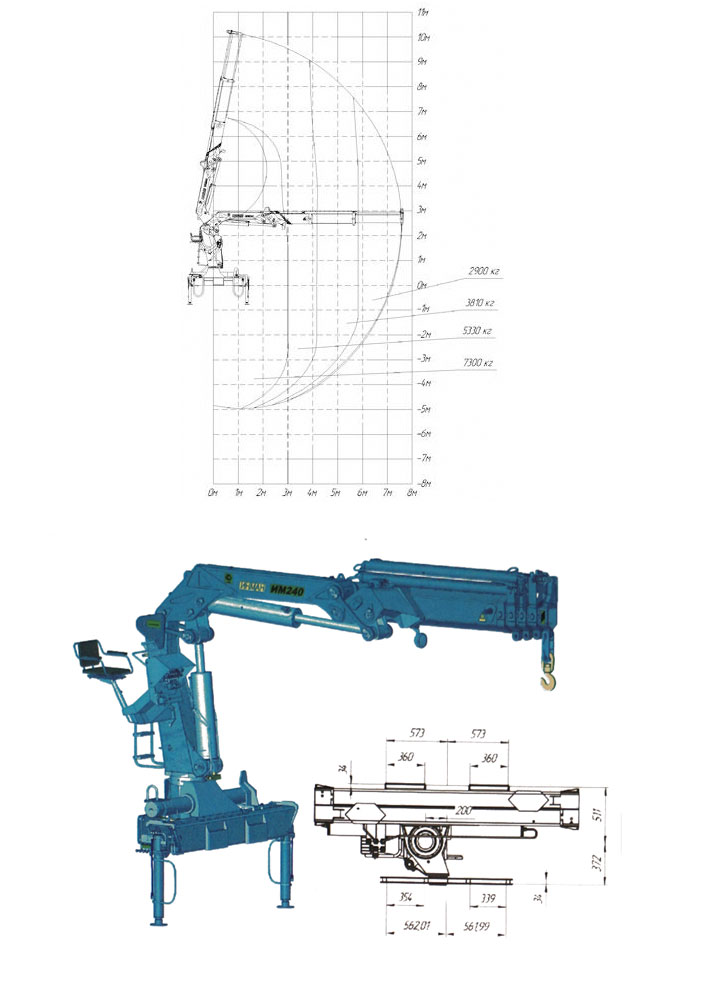

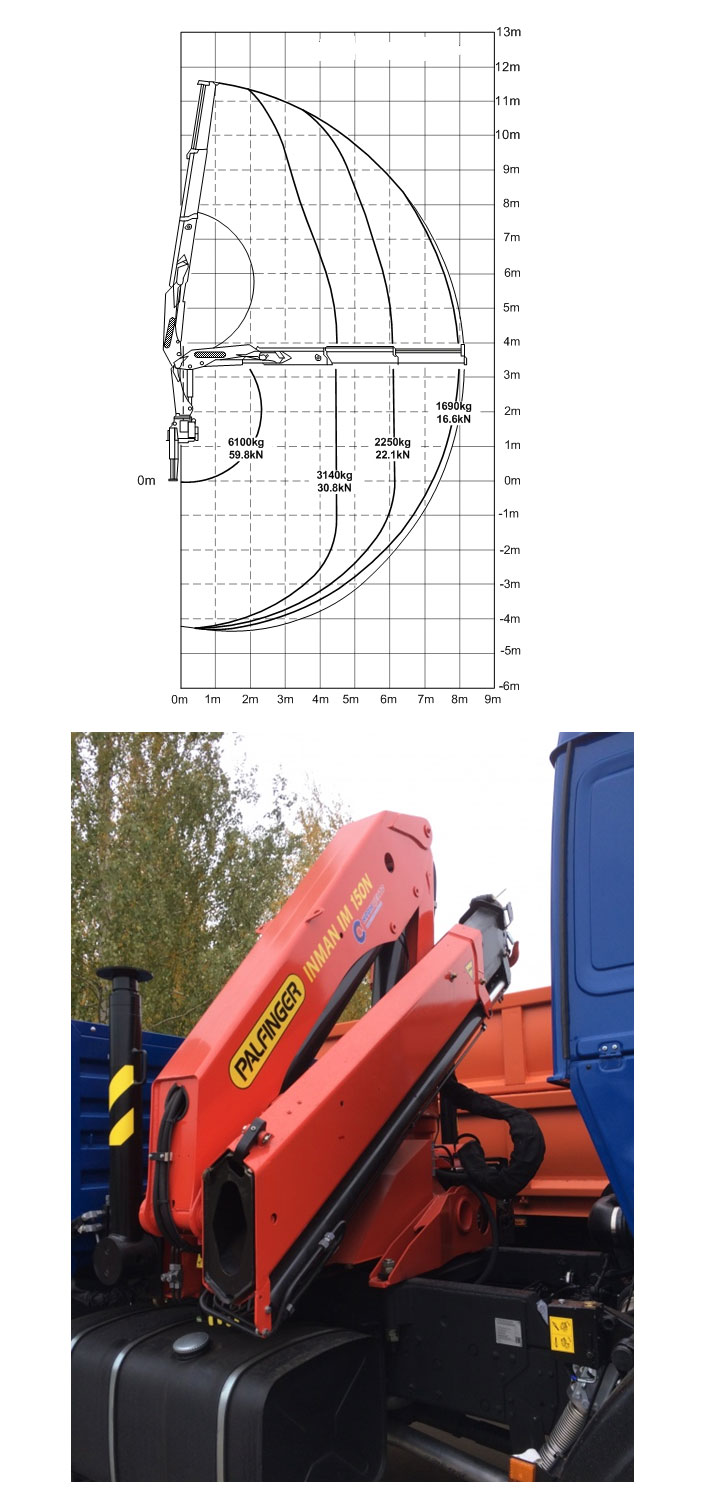

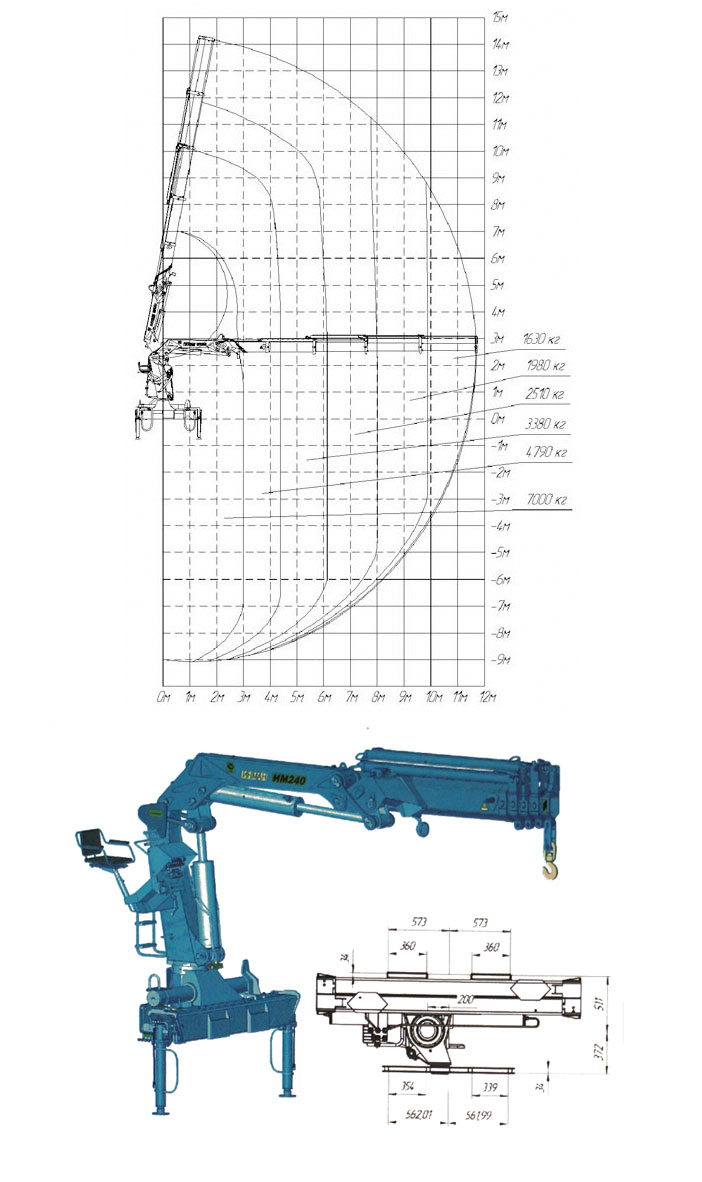

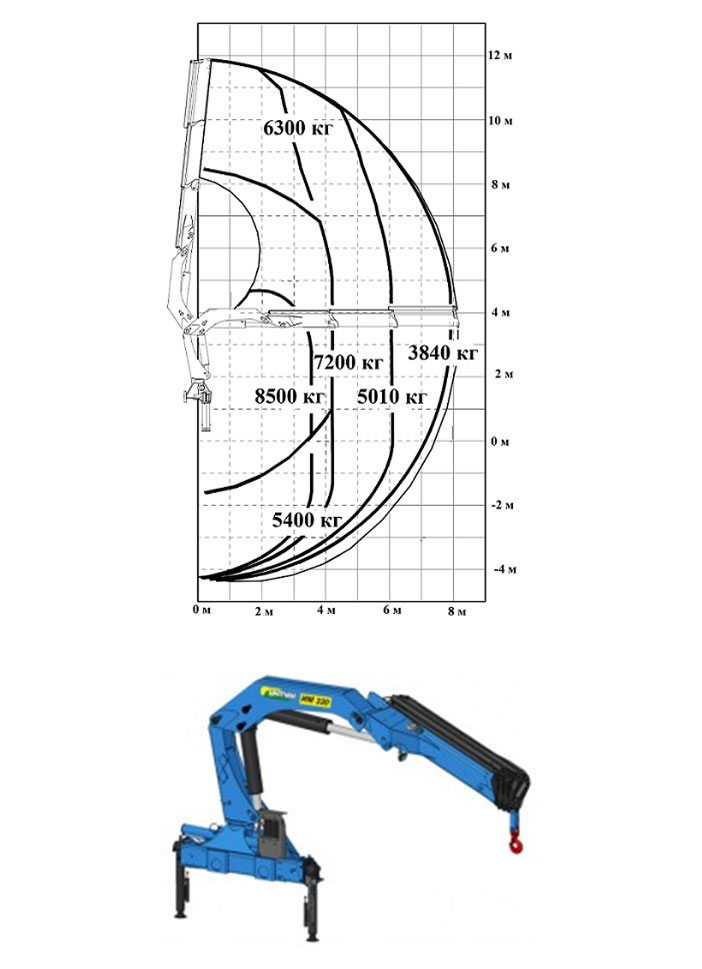

Lifting capacity |
|
|
|
|
|
|
Model |
|||||
|
Number of hydraulic extendable sections, pcs |
4 |
2 |
2 |
5 |
1 |
|
Load moment, tm |
21,00 |
21,9 |
30,4 |
28,8 |
27,00 |
|
Maximum lifting capacity, kg |
7000 |
7300 |
8500 |
6700 |
9000 |
|
Lifting capacity at maximum reach, kg |
1630 |
2900 |
3840 |
1790 |
3300 |
|
Maximum jib reach, m |
11,70 |
7,58 |
8,1 |
14,2 |
8,00 |
|
Operating ambient temperature, 0С |
-400…+400 |
-400…+400 |
-400…+400 |
-400…+400 |
-400…+400 |
|
Maximum lifting height, m |
13,63 |
9,58 |
10,5 |
17,96 |
9,50 |
|
Maximum lowering depth, m |
9,60 |
4,95 |
5,5 |
9,14 |
2,20 |
|
Control method |
Hydraulic. |
Hydraulic. |
Hydraulic. |
Hydraulic. |
Hydraulic. |
|
Column rotation angle, deg |
410 |
410 |
400 |
400 |
400 |
|
Control spot |
From the ground |
From the ground |
From the ground |
From the ground |
From the seat |
|
Leg positioning during transport |
Down |
Down |
Up |
Up |
Down |
|
Retractable leg type |
Hydraulic. |
Hydraulic. |
Hydraulic. |
Hydraulic. |
Hydraulic. |
|
Leg base, mm |
5890 |
5890 |
5640 |
5640 |
4500 |
|
Stud-axis size, mm |
848 |
848 |
838 |
838 |
630 |
|
Mounting base, mm |
1090 |
1090 |
1163 |
1163 |
870 |
|
Weight excluding the hydraulic pump and the fluid, kg |
3350 |
3000 |
2792 |
3514 |
3900 |
|
Hydraulic tank capacity (full, max, min), l |
186/167/129 |
186 / 167 / 129 |
100,8/92,3/85,1 |
100,8/92,3/85,1 |
|
|
Pump capacity, l/s |
50 |
50 |
55 to 80 |
55 to 80 |
|
|
Operating pressure, MPa |
25 |
25 |
30 |
30 |
|
|
Dimensions during transport, mm |
2 480 х 1 430 х 2 495 |
987 х 2 430 х 2 320 |
2 500 х 963 х 2 350 |
||
|

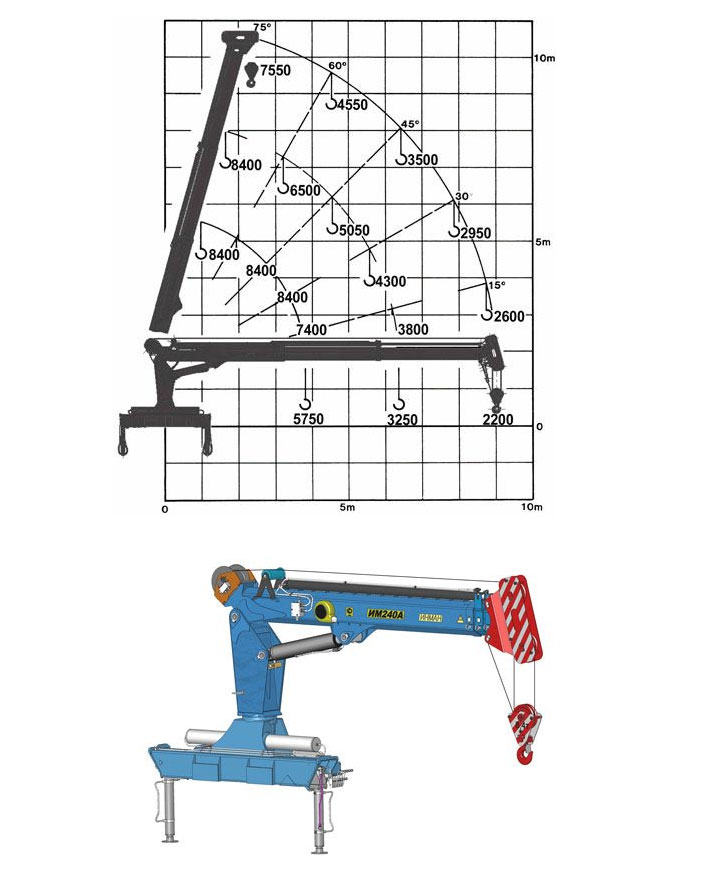

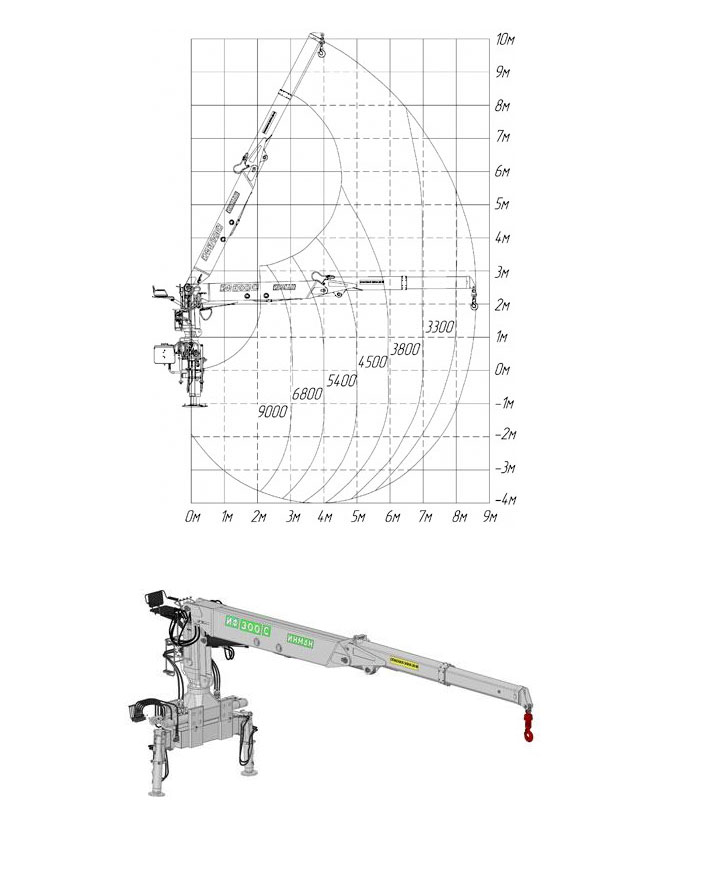

Lifting capacity |
|
|
|
|
|
*Technical specifications are presented on this page for reference only, as the parameters and other operational indicators depend on the vehicle configuration of choice.
